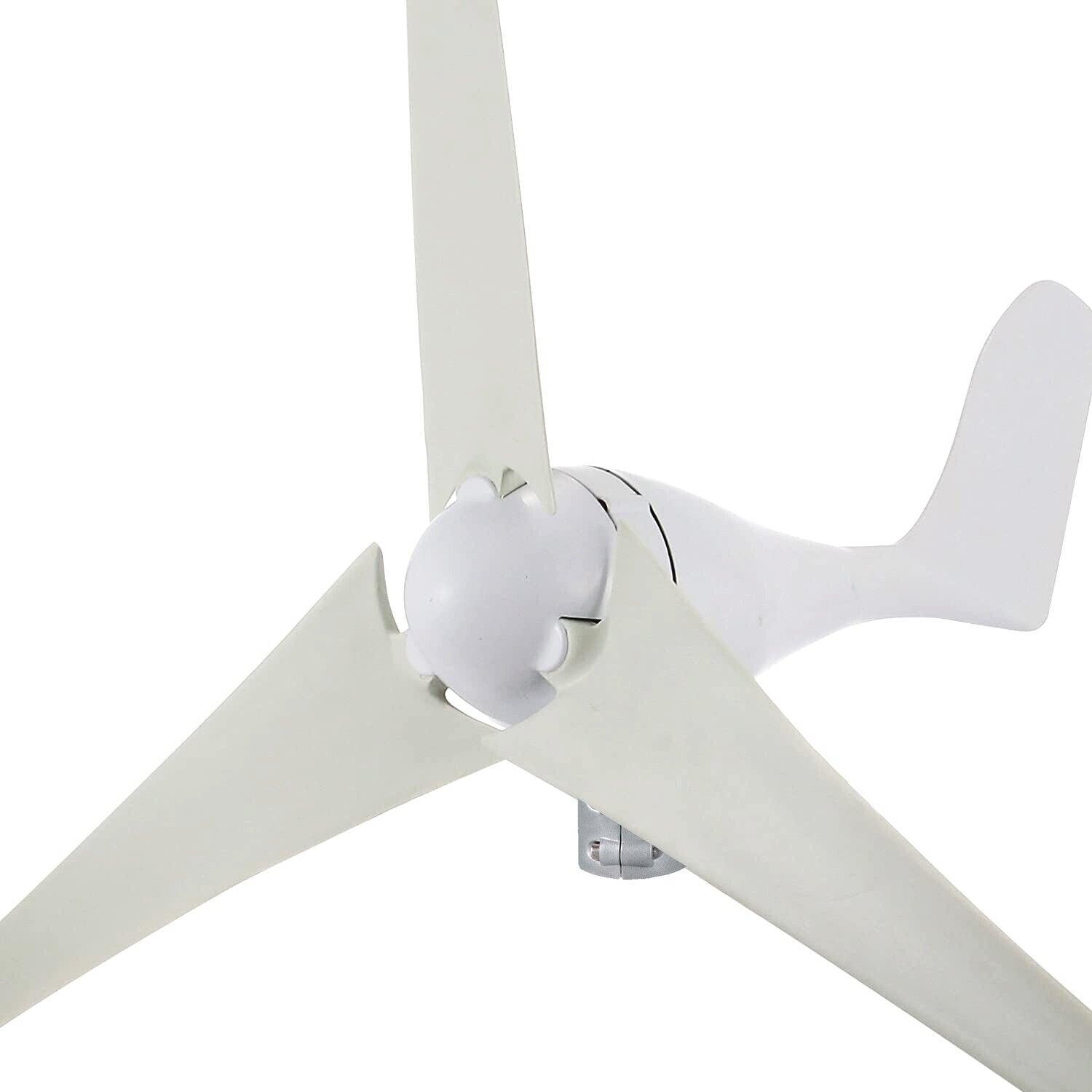

400W Wind Turbine Generator 20A Charger Environmental 3 Blades Windmill Power


Price:
Sale price$219.95

Features & Details

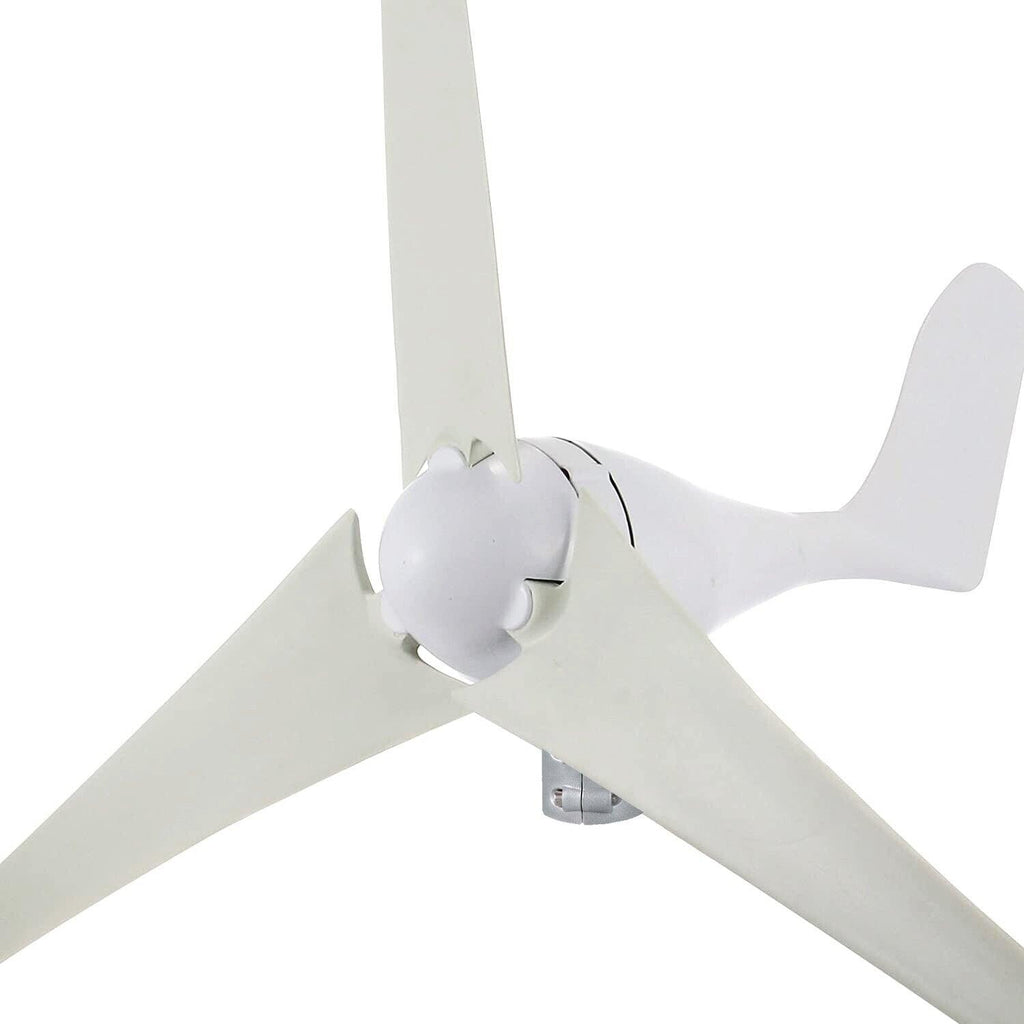

  • 【HIGH-QUALITY BLADES】- The blade material is synthetically injection moulded with high-strength plastic plus 30% carbon fibre element and anti-UV anti-corrosion material. Simultaneously, the fashionable spiral blade is also designed with aerodynamics to make the rotor run smoothly, reliably, and quietly.
  • 【EXCELLENT PERFORMANCE】- Designed with three-phase AC PMG, the turbine generator boasts low torque, high-power tracking intelligent microprocessor that can effectively regulate the current and voltage. It increases wind energy utilization and annual power generation.
  • 【COMPACT & FIXED】- With dual bearings, the fan movement is more stable with low vibration and low noise. Its compact shape has the lowest starting wind speed and a larger windward area, enabling it to generate electricity at lower wind speeds.

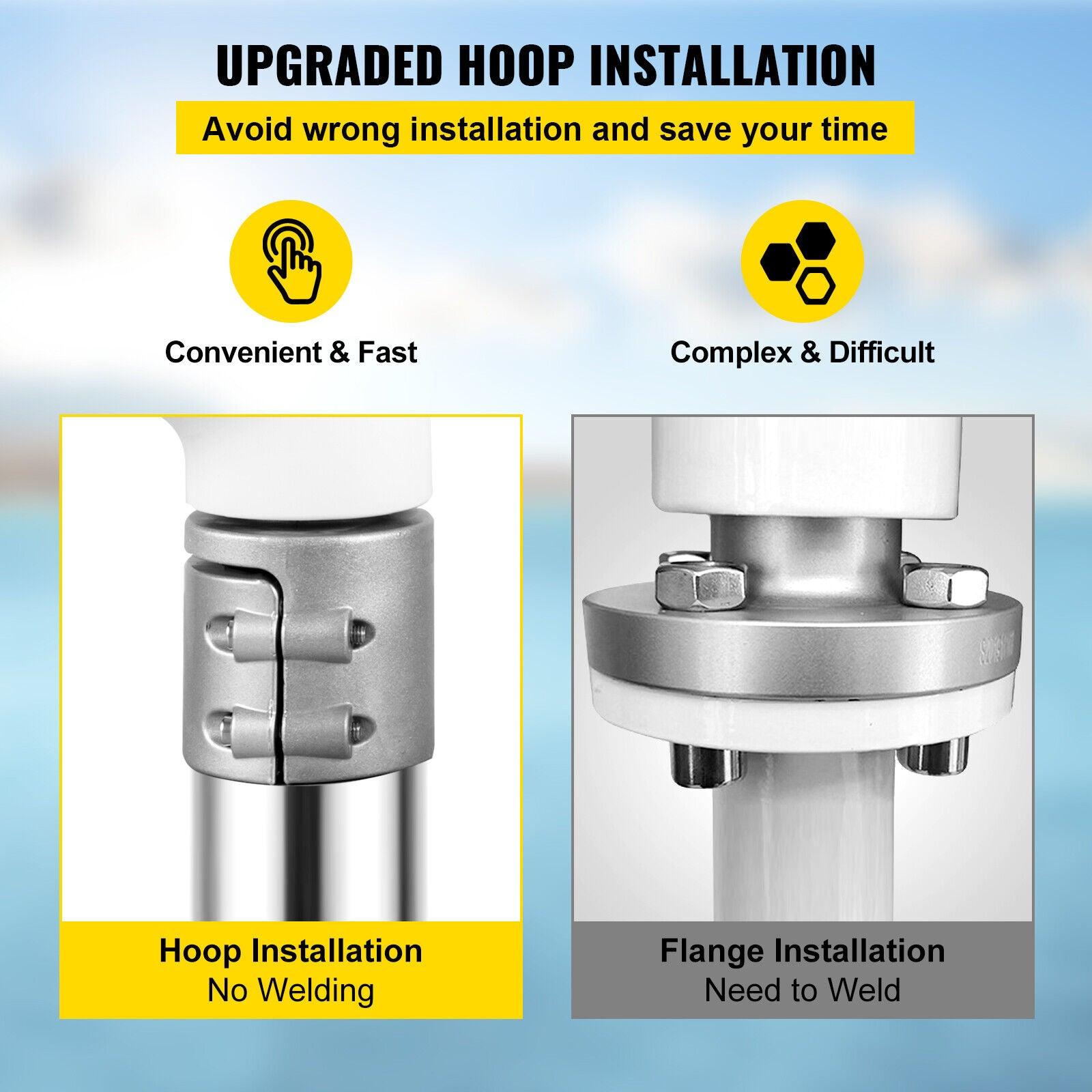

  • 【EASY INSTALLATION】- All things you need for installation are included. Humanized and convenient hoop design(not required welding), easy to install and maintain. DIY installation methods with all materials provided. It can be used in conjunction with solar panels.

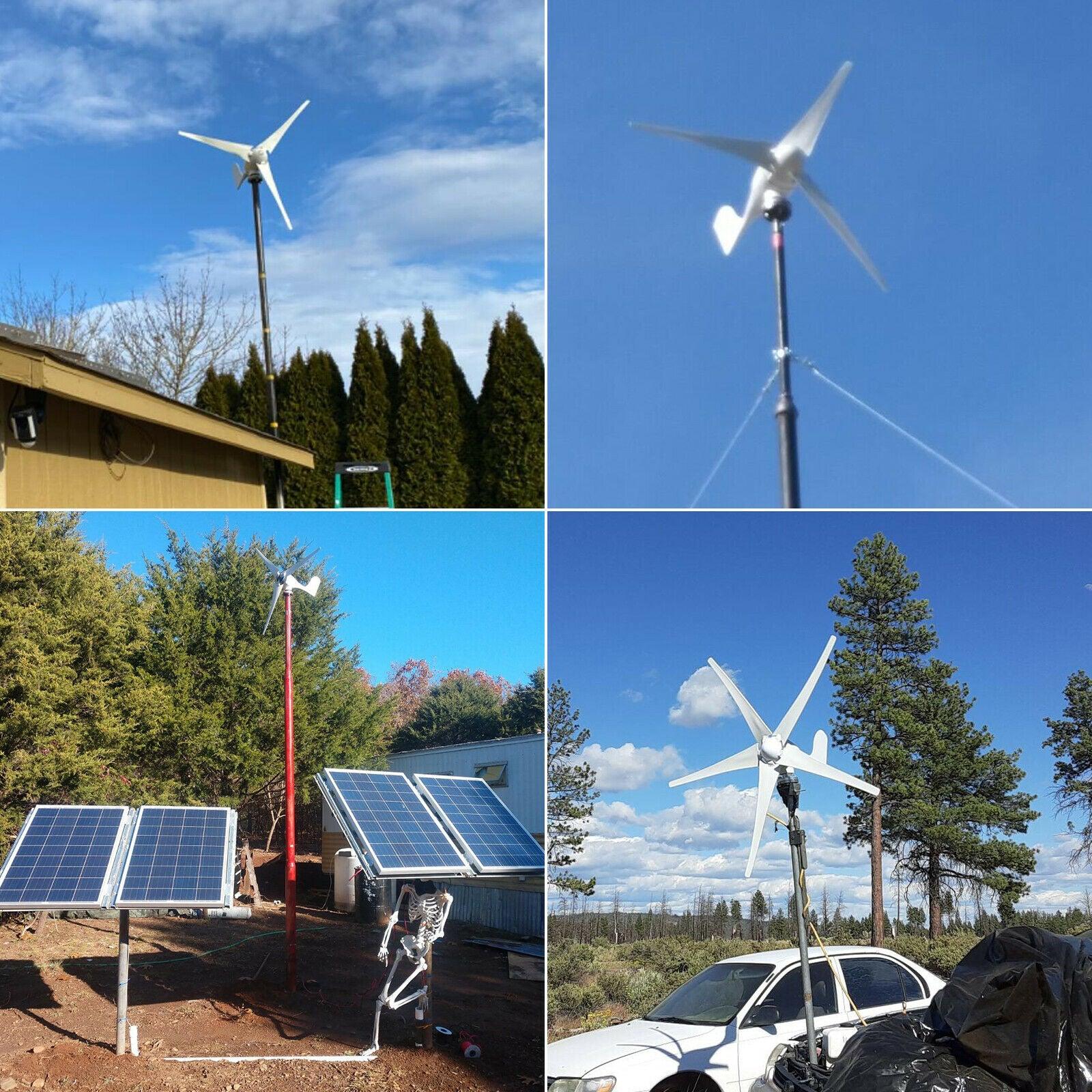

  • 【MULTIFUNCTIONAL USE】- It is the ideal power supply system for scattered households, posts, weather stations, communications base stations, highways, scenic spots, and other places. Well suited for the leisure sector, it is famous for battery charging on boats, gazebos, chalets, or mobile homes.
Specifications
  • Wind Turbine
  • Rated Power: 400W
  • Start-up Wind Speed: 2.5 m/s(8'/s)
  • Rated Wind Speed: 12 m/s(35'/s)
  • Number of Blades: 3
  • Material of Wind Leaf: PBT

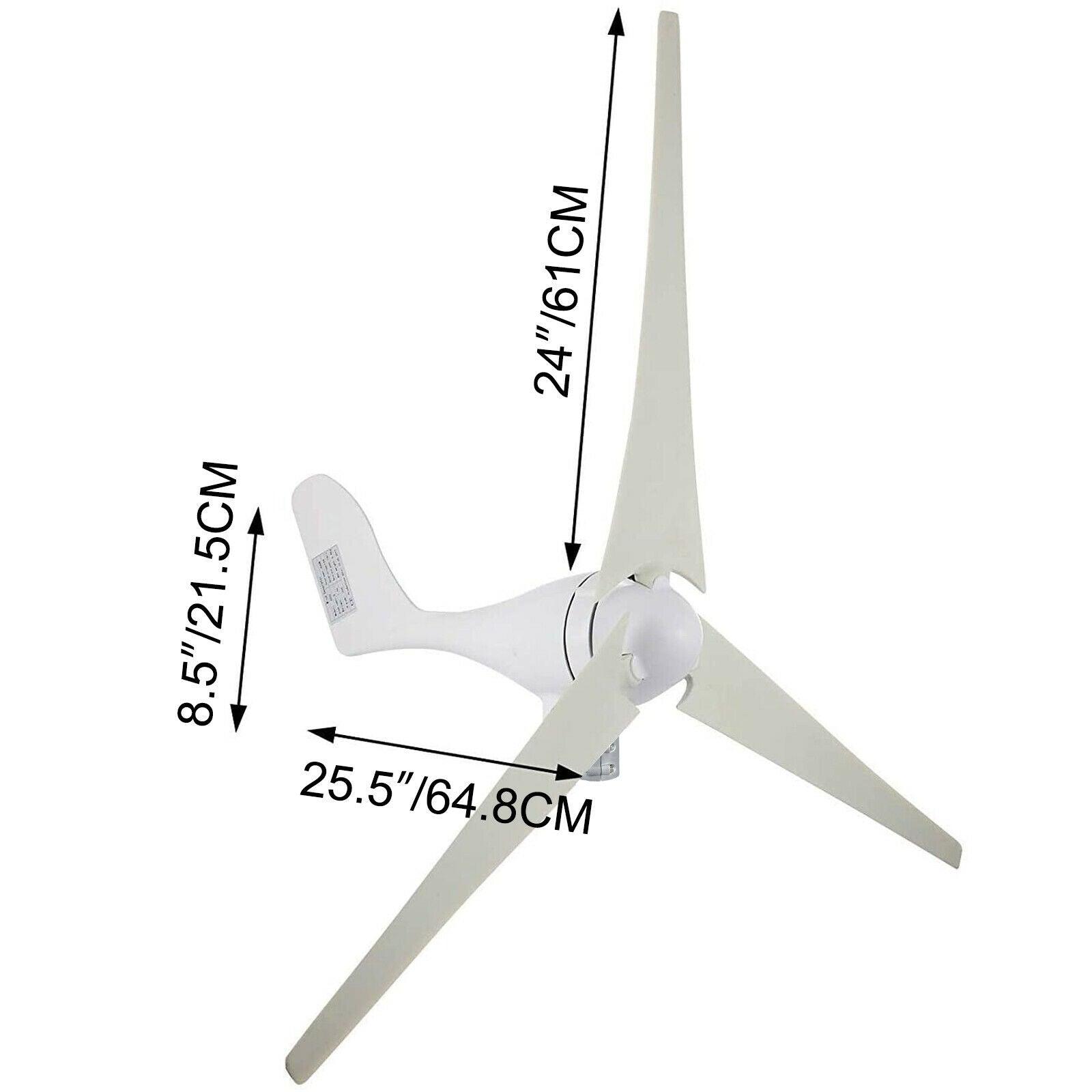

  • Rotor Diameter: 1.2 m(4')
  • Rated Speed: 800 r/min[RPM]
  • Tower Diameter: >80 mm(3.2")
  • Tower Height: 4.5 m-10 m(15-33')
  • Battery Capacity: 200AH-400AH
  • Certification: CE, RoHS, ISO9001
  • Controller
  • Battery Rated Voltage: DC12V
  • Rated Turbine Power: 400W
  • Brake Voltage: 14.5V
  • Turbine Recovery voltage: 13.2V
  • Largest Discharging Current: 20A
  • Static Power: 15mA
  • Working Temperature: -35~+75℃
  • In breaking Protection: IP67

Key Features

  • High-Quality Construction

    Blades use reinforced glass fibre and help with optimized structure and aerodynamic shape to effectively reduce torque resistance and guarantee stability.

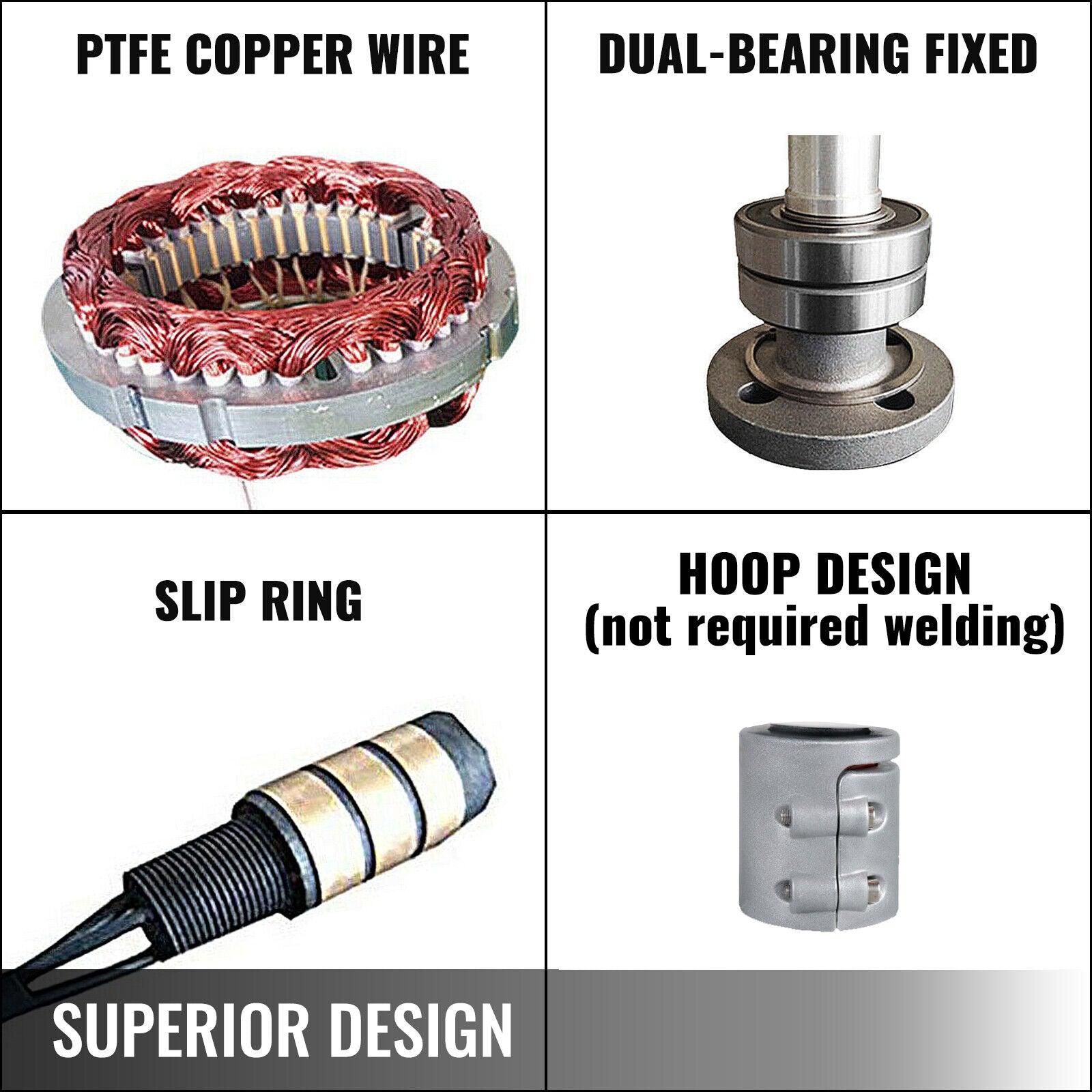

  • Superior Design

    The wind turbine is designed with copper coil, high-quality aluminium alloy, and stainless-steel parts, so in any harsh conditions, it features good antioxidant and anti-corrosion ability.

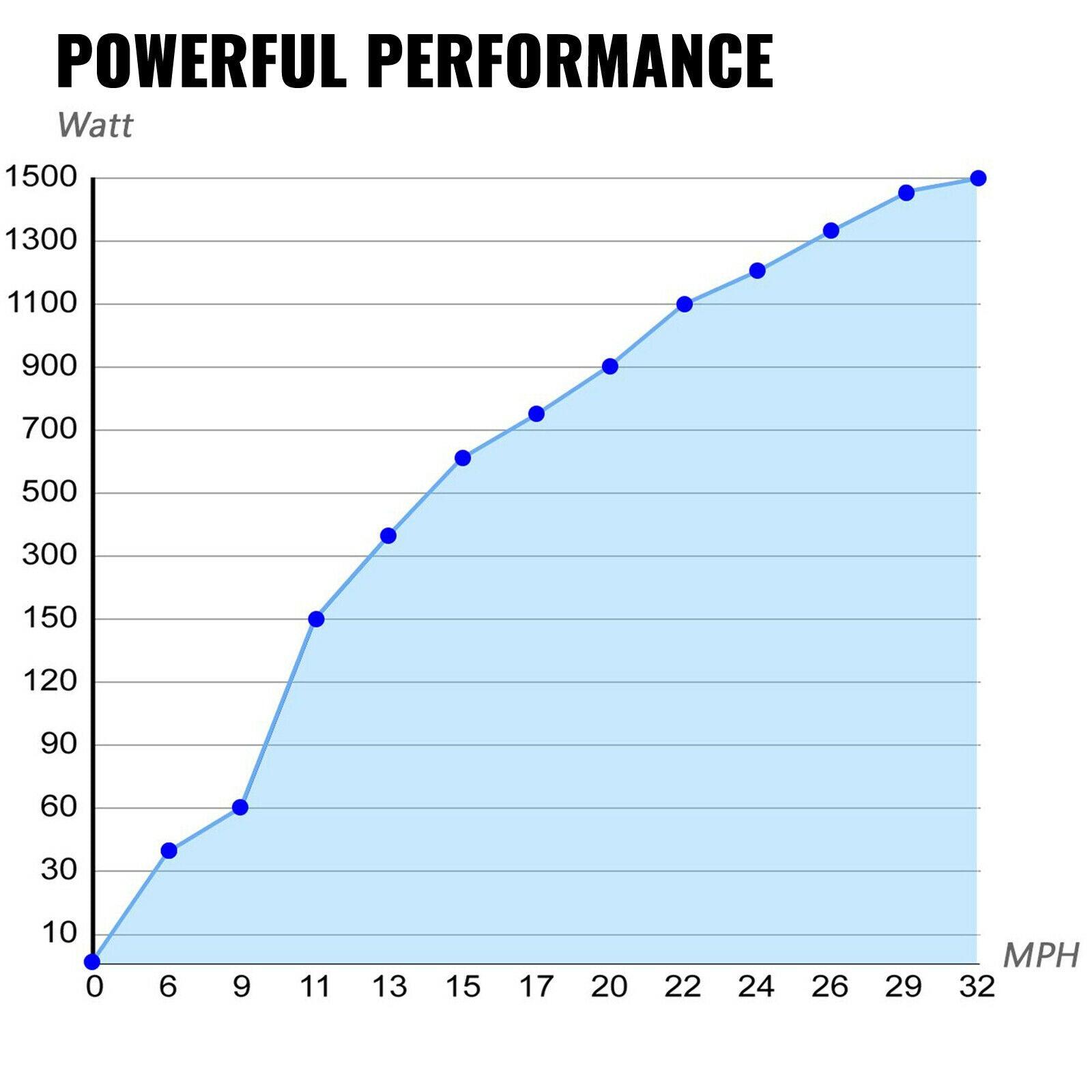

  • Powerful Performance

    The motor uses a unique magnetic circuit design, designed with low start wind speed and small starting torque. It can ensure the wind turbine's breeze start capability.

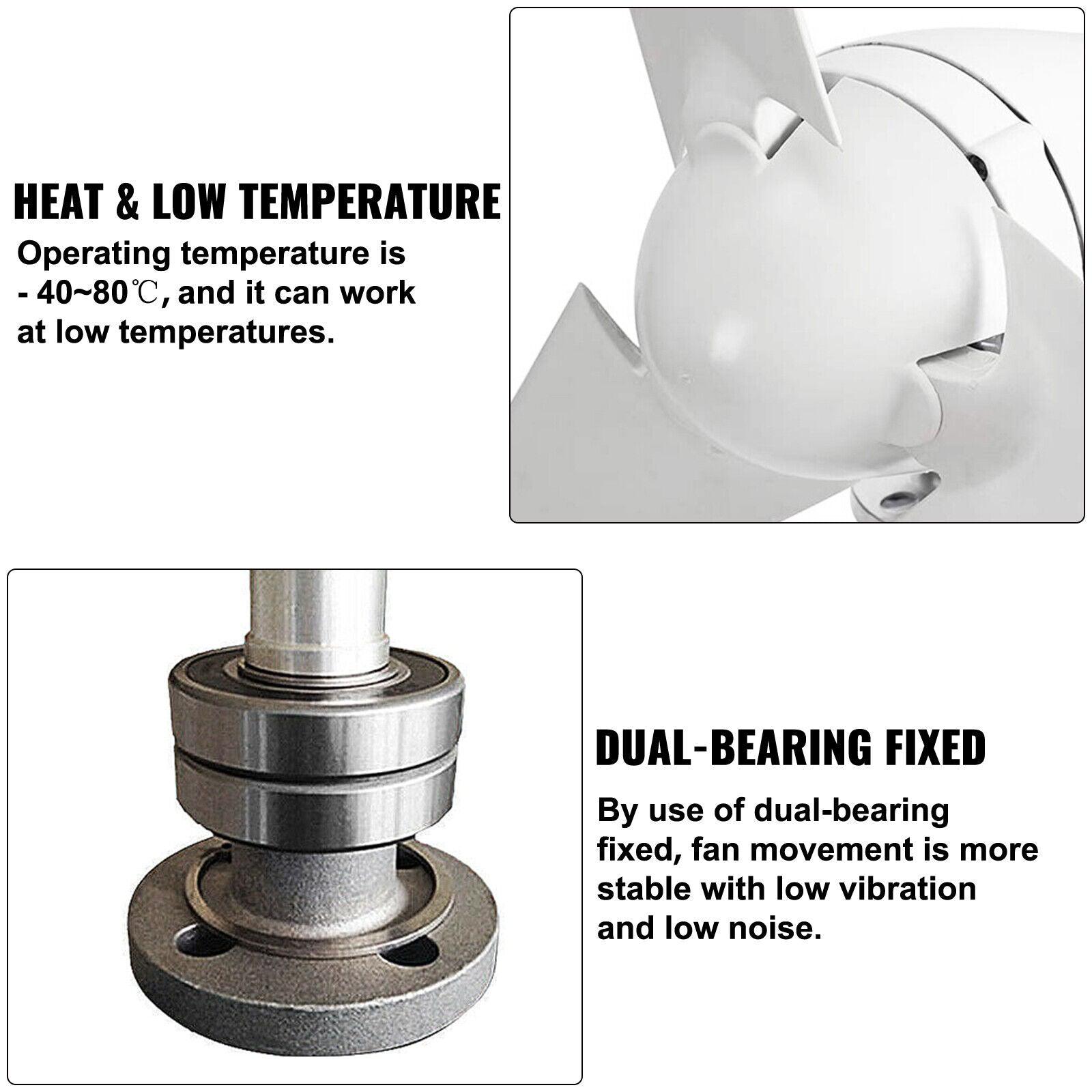

  • Excellent Heat Resistance

    The wind turbines feature with high power generation efficiency, breeze start, corrosion resistance, and waterproof performance. Dual-bearing fixed with low vibration and low noise.

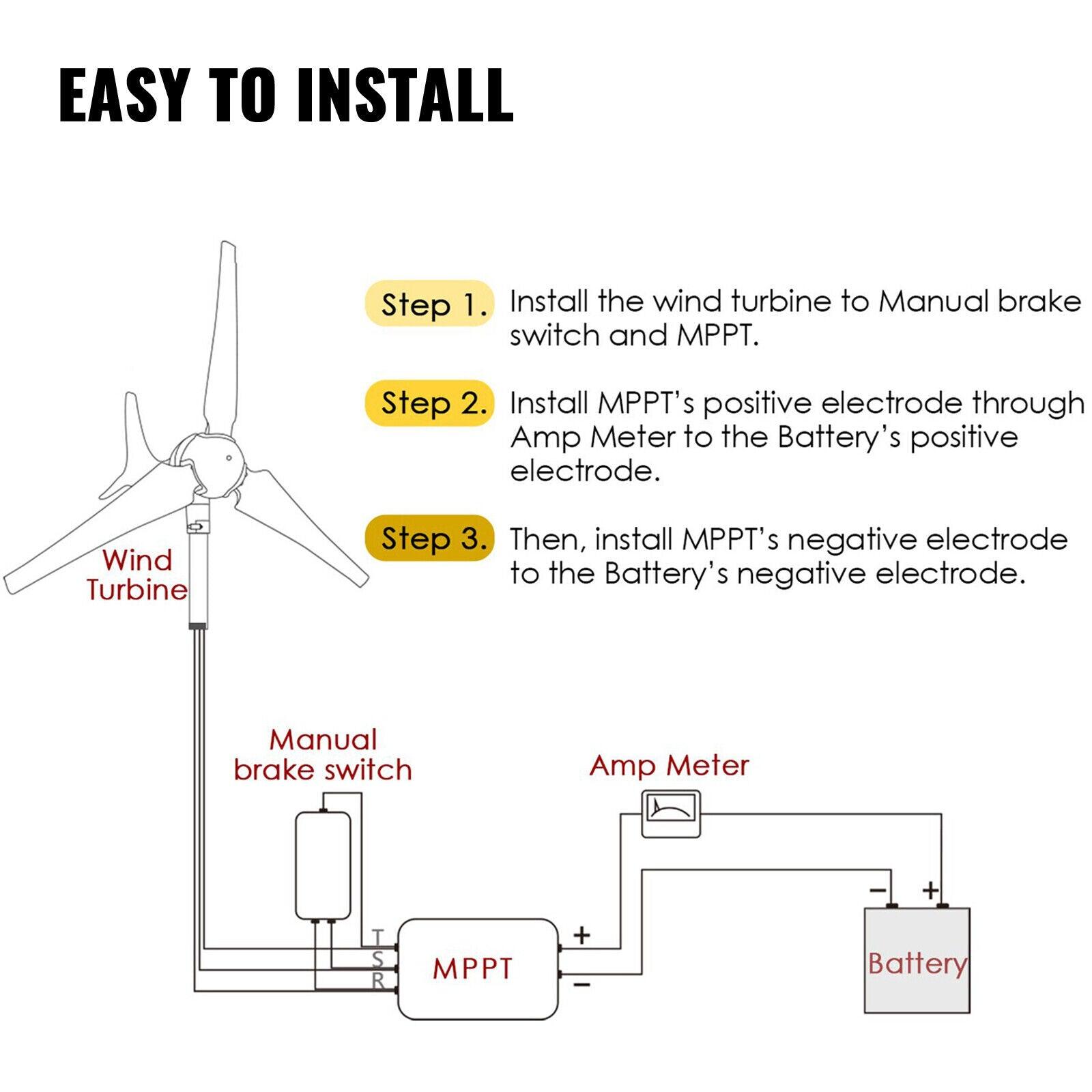

  • Easy To Install
    The wind turbine generator uses easy DIY installation methods with all materials provided. It can be used in conjunction with solar panels.

  • Wide Application

    It is the ideal power supply system for scattered households, posts, weather stations, communications base stations, highways, scenic spots, and other places. Well suited for battery charging on boats, gazebos, chalets, or mobile homes.

  • Wind Power Turbine Generator

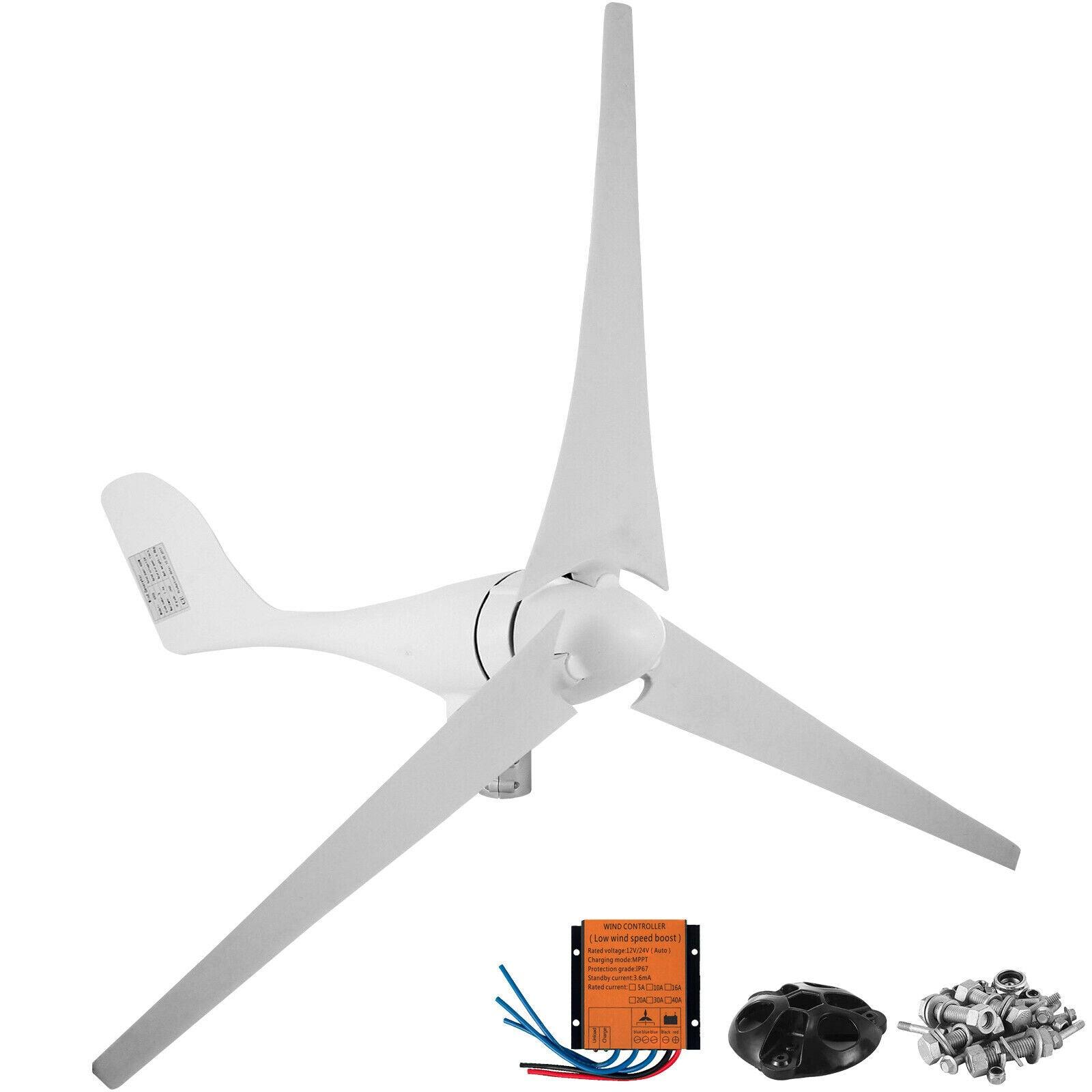

     The listing is about 12V 400W three fiber blades wind turbine generator kit with a charge controller. Featuring high-quality blades and a three-phase permanent magnet motor, it boasts low start wind speed, low vibration, and low noise, and also can increase wind energy utilization and annual power generation. It is a good choice for home use, monitoring use, boat/marine use, and more.
    • High-quality Blades
    • Powerful Performance
    • Compact & Fixed
    • Easy Installation

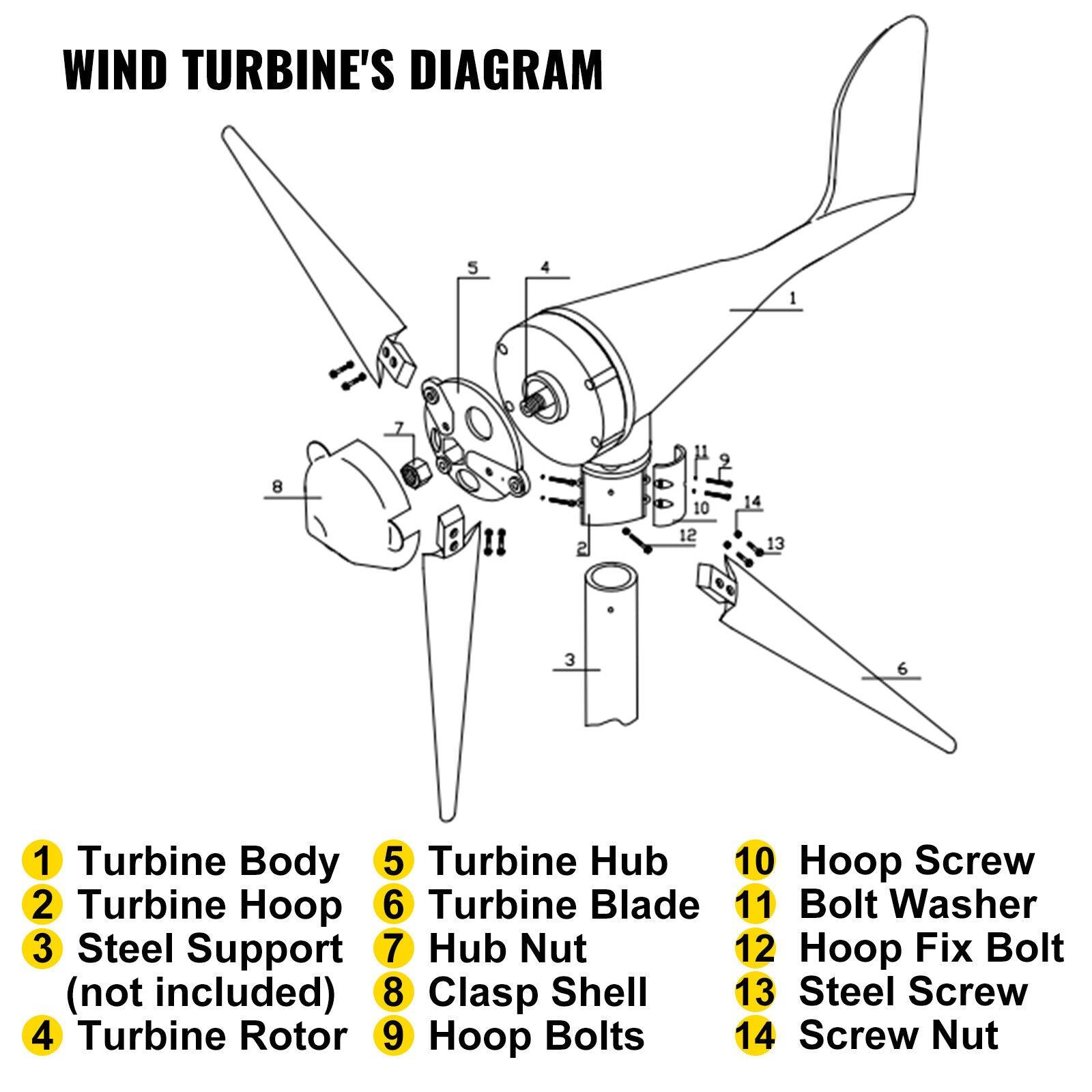

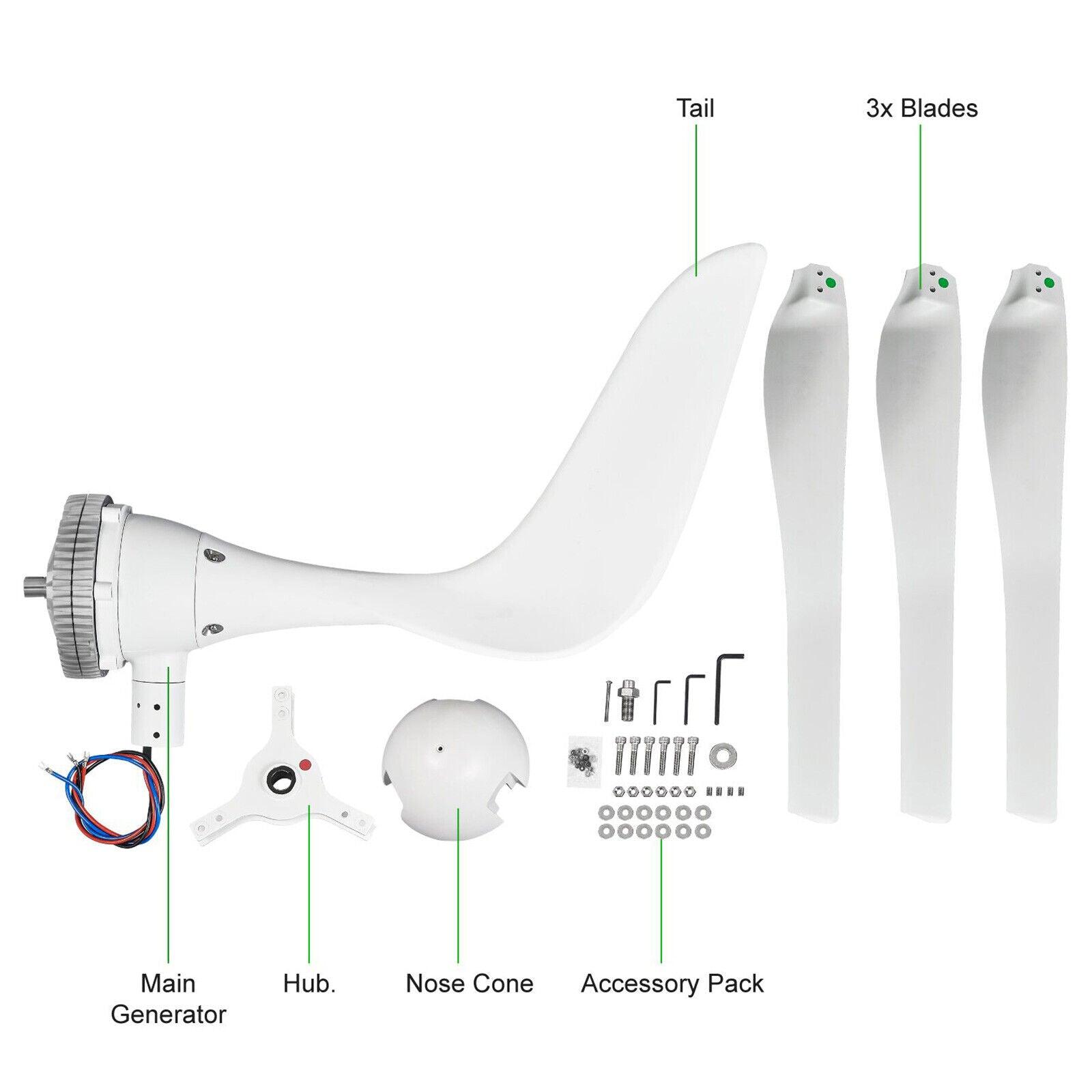

    Package Content
    1 x Wind Turbine
    1 x Controller
    1 x Nose Cone
    1 x Set Screws and Nuts
    3 x Blades
    1 x Instruction Manual
