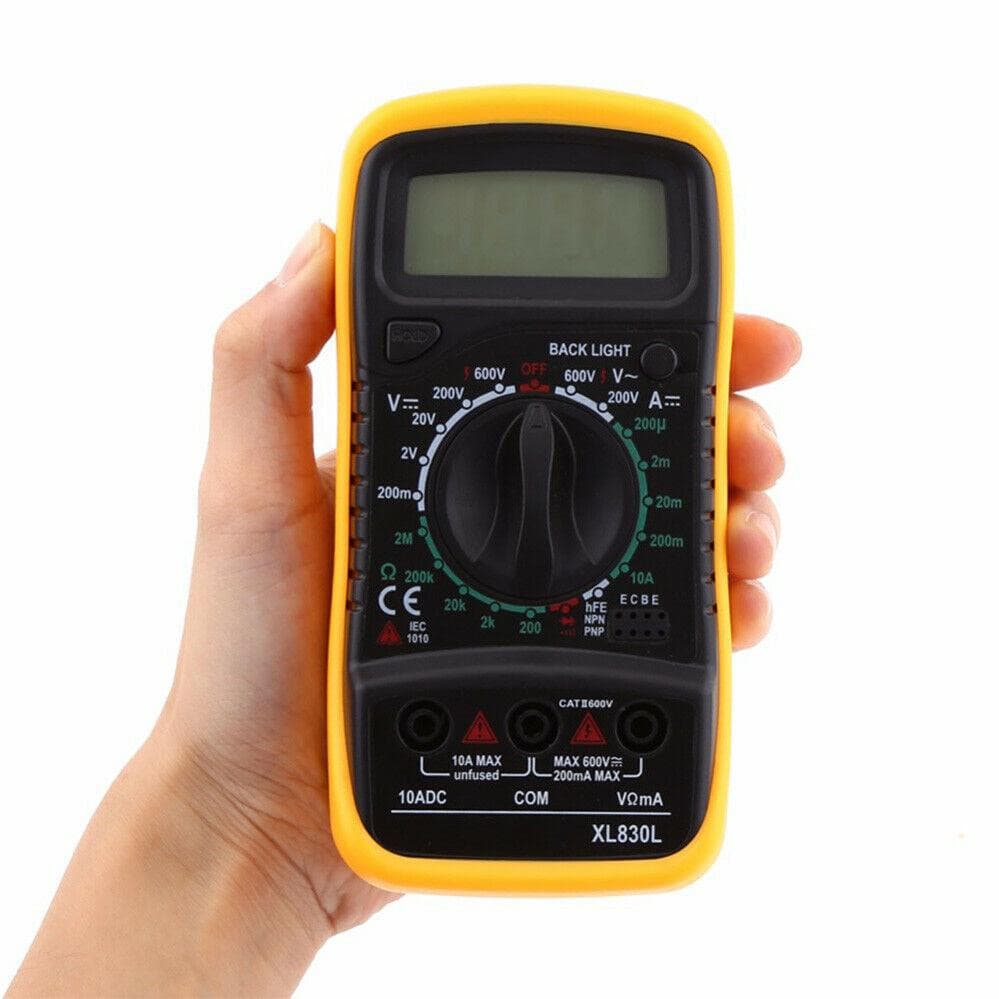

XL830L AC/DC Digital Multimeter Current New Tester Volt Meter Ohmmeter Ammeter

Sale price$24.95

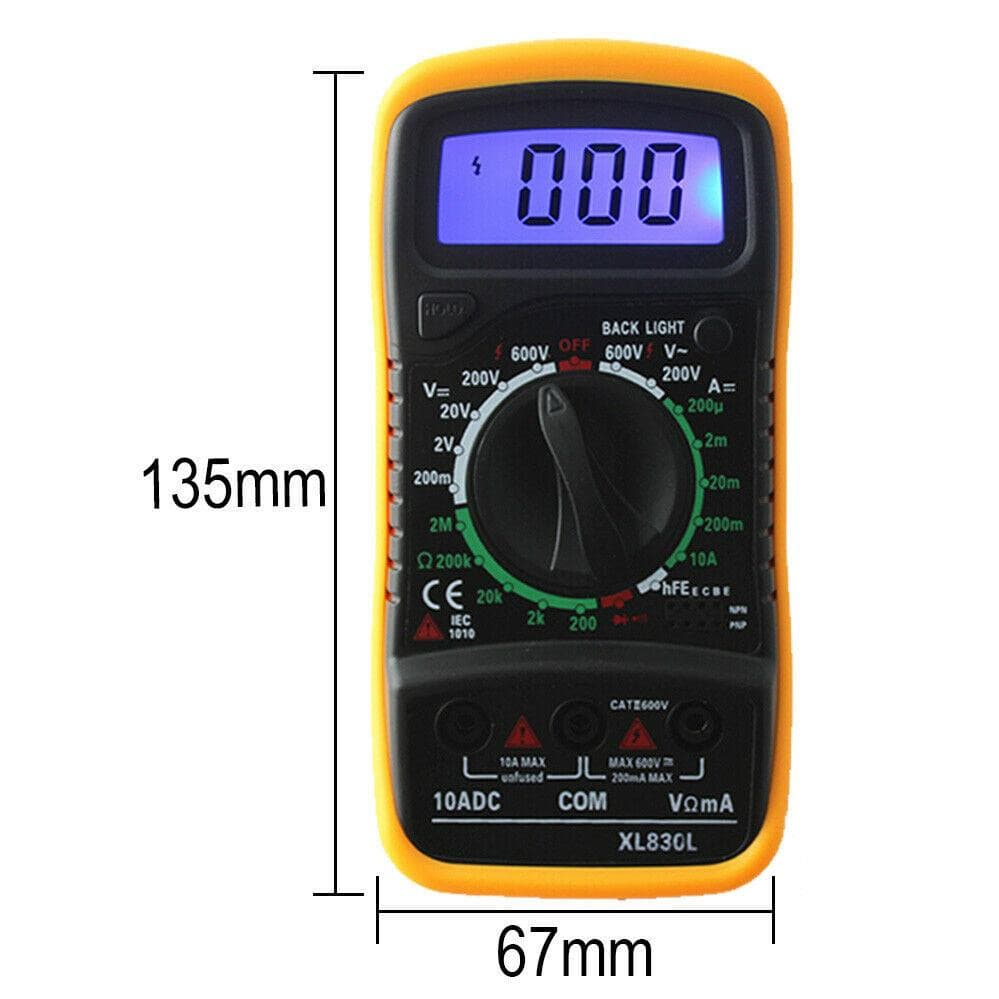

  • Size: 135mm × 67mm ×33mm
  • Test lead material: PVC/Brass
  • Total line length: 60cm
  • Display size: 45×20mm
  • Battery: 9V, 6F22 (Not included)
The Digital Multimeter is a practical tool for electrician use.
It is easy to operate, and the readings indicates directly on the screen.
It can be used to overhaul all kinds of circuit boards.
It is also an ideal teaching instrument for students.

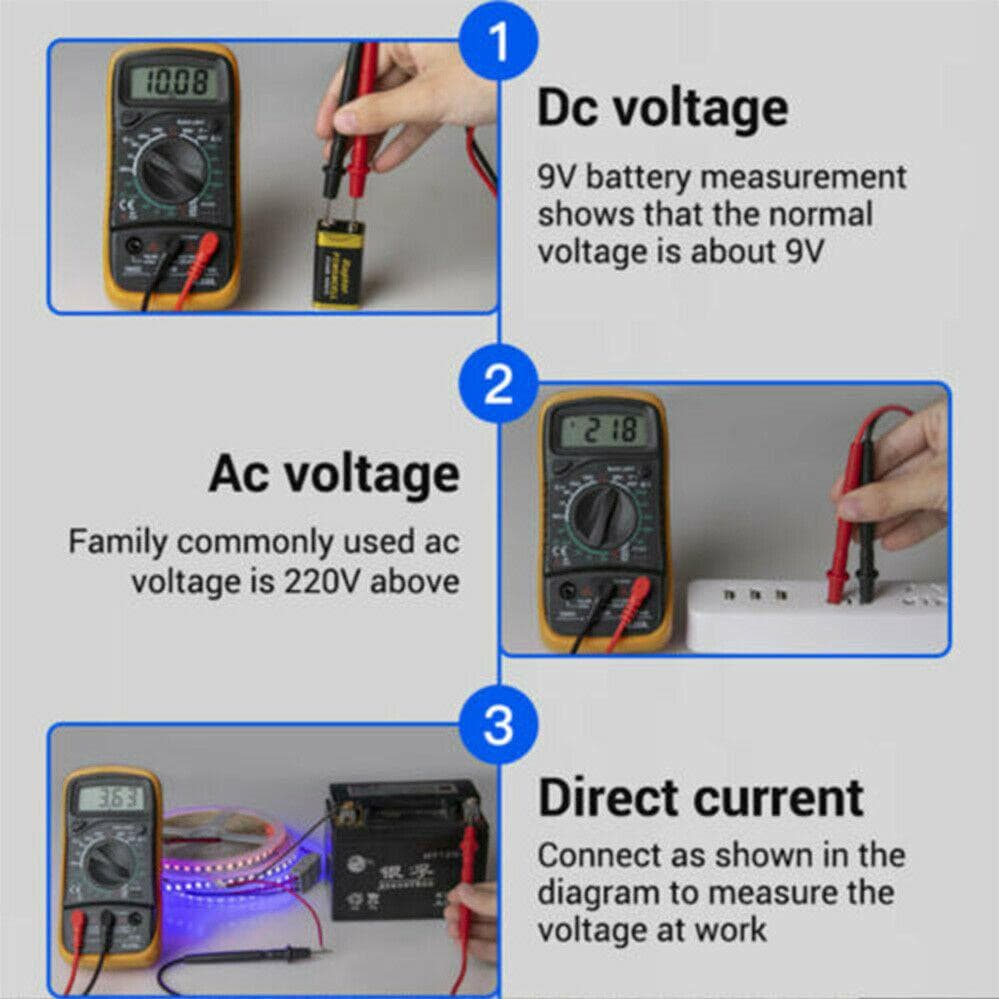

  • DC voltage: 200mV--2V-20V-200V-600V
  • AC voltage: 200V-600V
  • DC current: 200u-2m-20m-200m-10A
  • Resistance: 200Ω-2kΩ-20kΩ-200kΩ--2MΩ
  • Transistor measurement: Yes (PNP/NPN transistor hFE)
  • Diode measurement: Yes
  • Input resistance: 1MΩ
  • Maximum display: 1999
  • Digital LCD screen, maximum display value 1999
  • Data retention function.
  • Low voltage symbol display.
  • Background light function.
  • Overload protection.
  • Industrial grade silicone protector
  • Anti-drop/slip/Anti-static.
  • Effective anti-falling silicone material to protect the hardware from damage.
  • Bright screen with backlight.
  • The measured value can be clearly seen in a dim environment.
  • Adjustable extension support frame design.
  • Smooth and tight insertion and removal of the test lead socket.
  • Accurate and clear printing on the panel.
  • Function range dial.
  • 20 gears, the gears are precise, and the holes are clear and distinguished by color
  • Strong sense of pause.
  • Screen backlight.
  • Bright screen digital display is clear, with voltage symbol display.

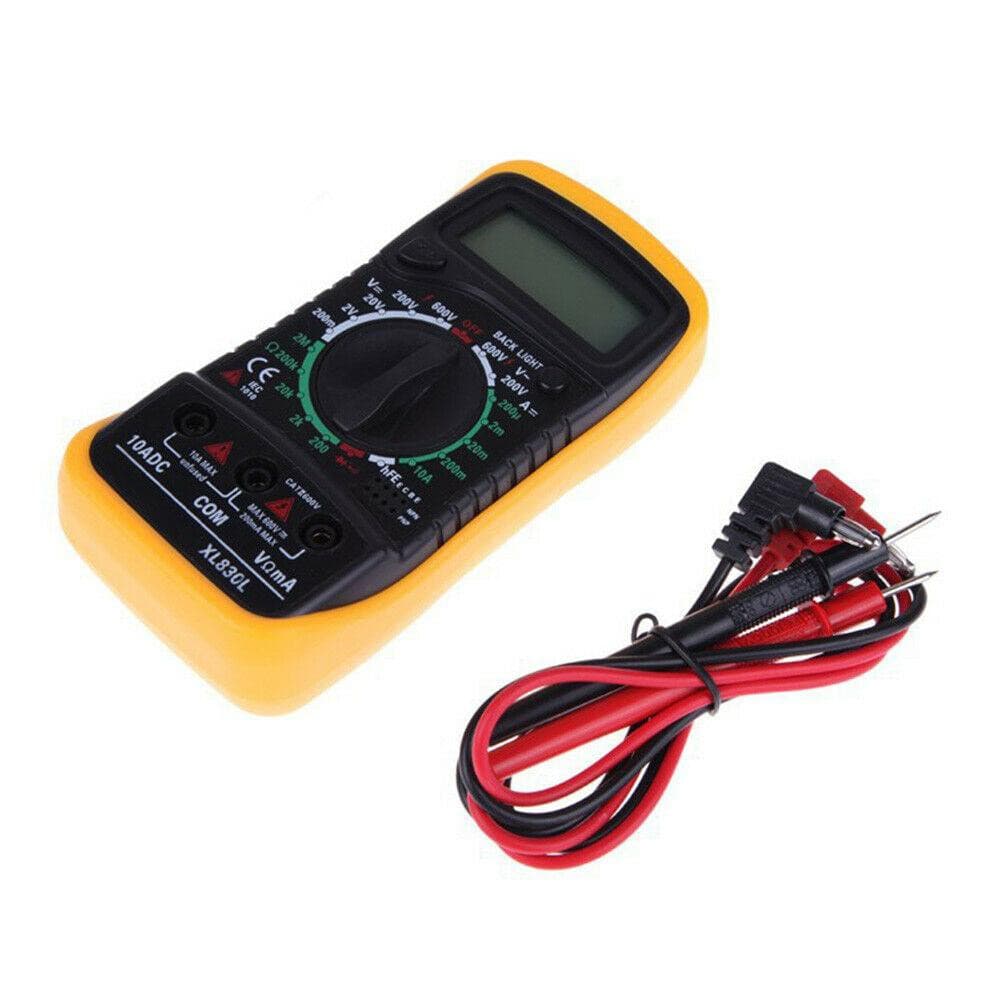

Package Includes:
  • 1 x LCD Digital Multimeter. (Battery not included)
  • 1 x Instruction
  • 2 x Test Probes.
