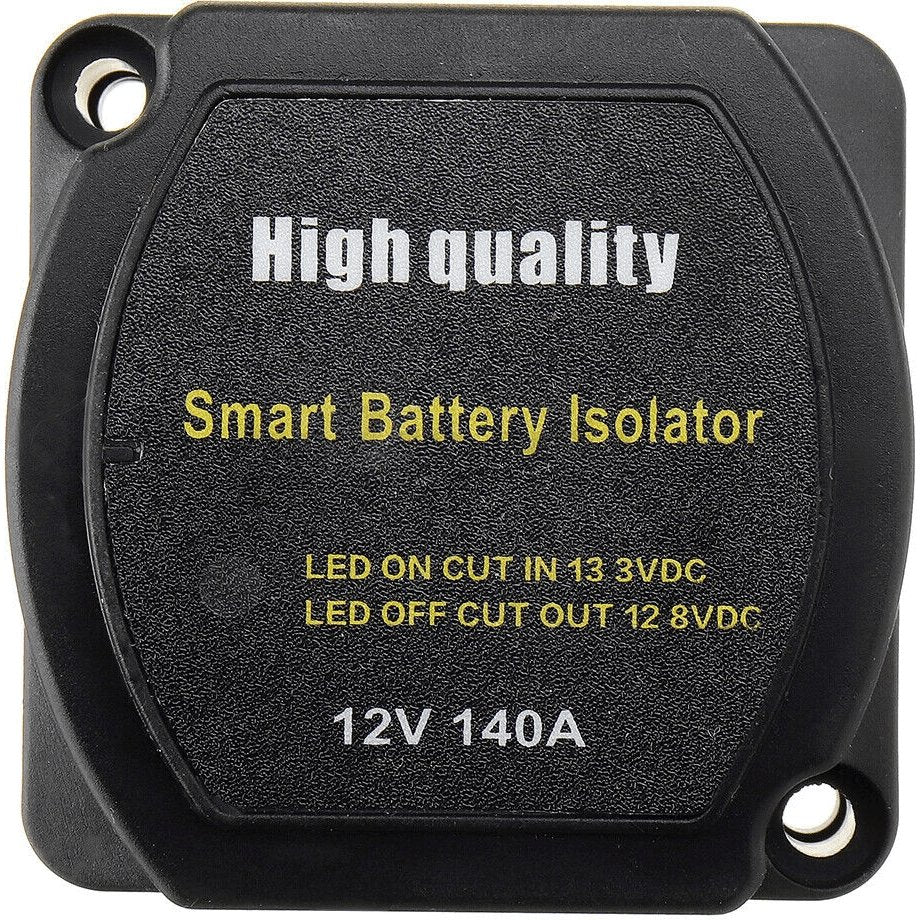

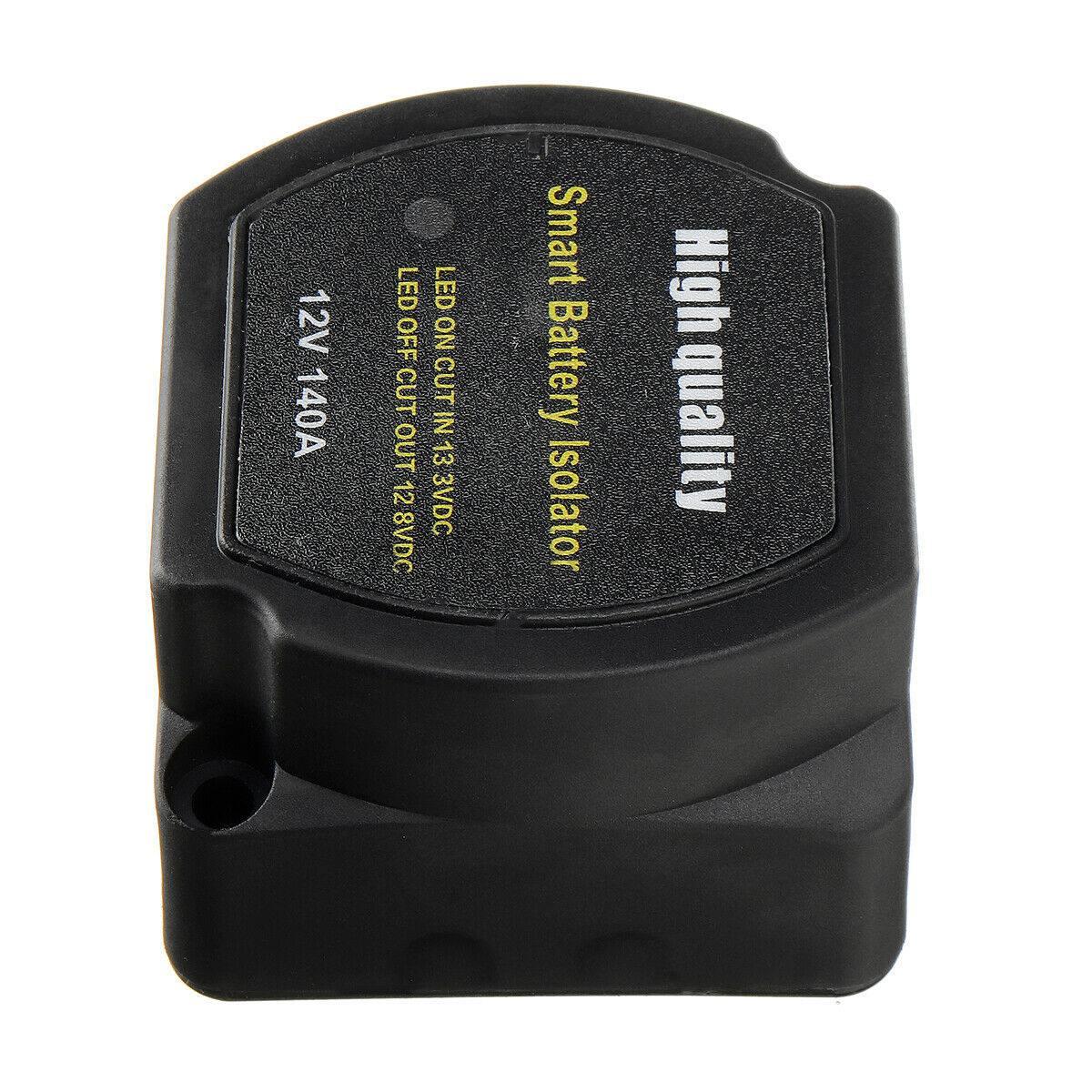

Dual Battery System Kit For Car Voltage Sensitive Relay 12V 140A IP65 Smart Isolator

Sale price$31.95
Product Specifications:
  • Automotive Dual Battery Isolator Relay Protection Voltage Split Charge 12V 140A
  • Material: Nylon
  • Color: Black
  • Nominal Voltage: DC 12V
  • Combine Voltage: DC 13.3V
  • Open Voltage: DC 12.8V
  • Continuous Rating: DC 125A
  • Intermittent Rating: DC 140A
  • Power Consumption: 10mA (Standby)/ 330mA(Engage) / 0mA (Storage)
  • Terminal Studs|: M6(1/4”)

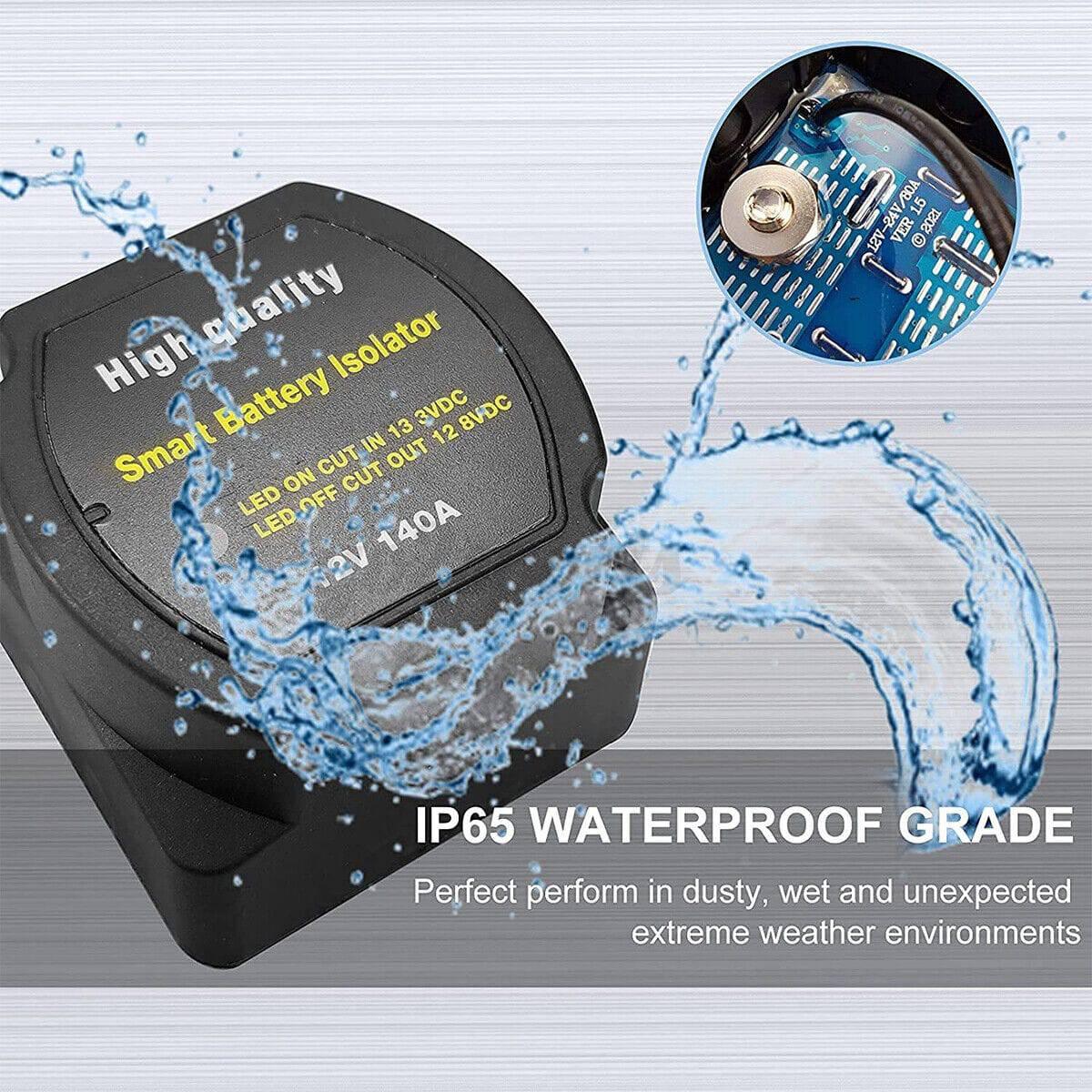

  • Waterproof Level: IP67
The split charge relays are CE approved products with a red LED indicator and allows the split charging of a second battery without discharging the primary battery or the start battery.

  • Automatically combines two batteries when charging and isolates the two batteries when not charging.
  • Suitable To Install into Camper Vans, 4x4, Leisure Vehicles & Marine Applications.
  • Not 70 Amp Cable As Per Some Other Similar Priced Kits.
  • No voltage drops comparing to battery isolator diodes (0.6V).
  • Meets ISO8846 Ignition Protection, suitable for use in engine room.
  • Robust Glass Fiber reinforced Nylon enclosure.
  • Built-in LED indication (ON when VSR engages).

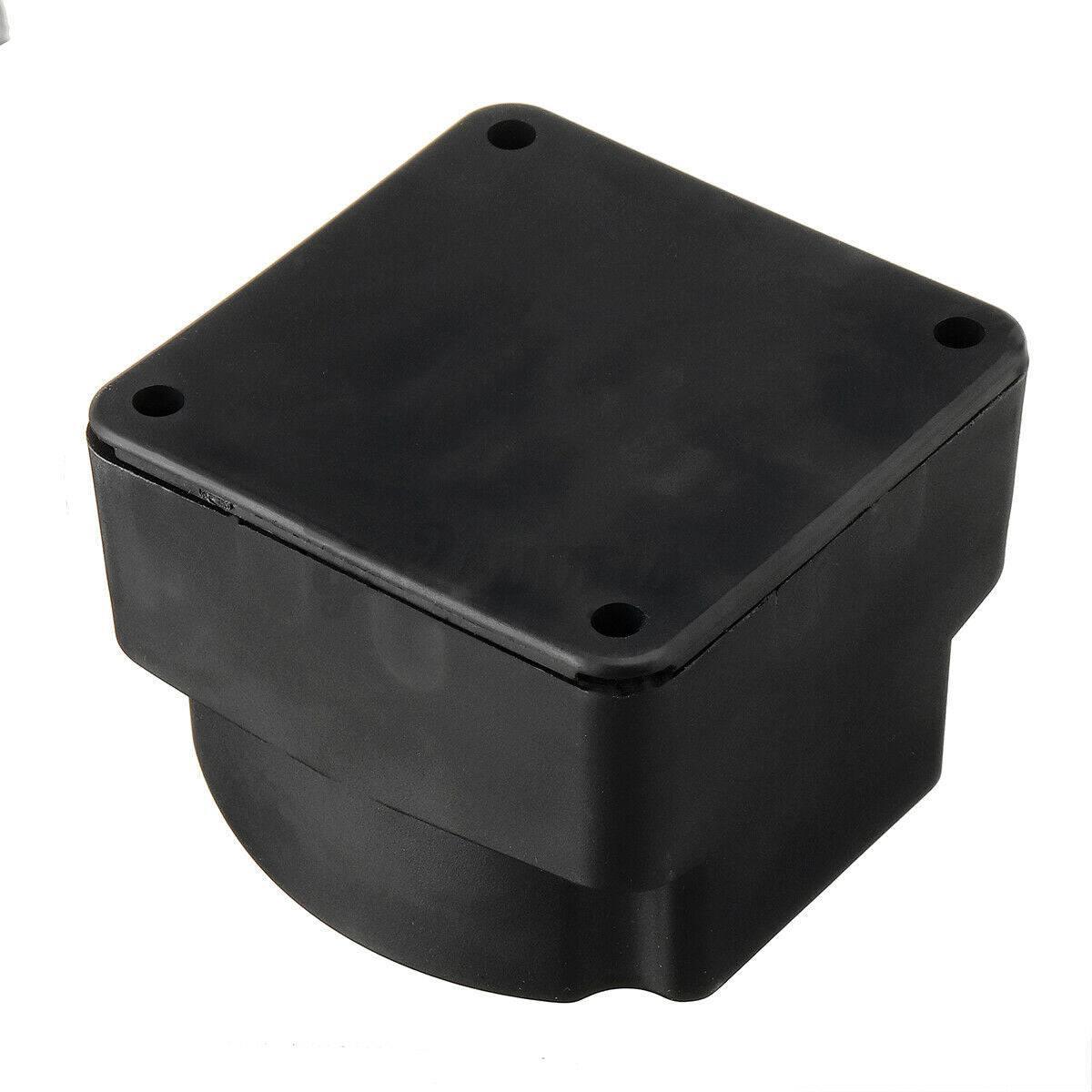

  • Surface or panel mount options provides flexibility when installing.
  • Optional Storage Mode allows zero power consumption when engine is off.
Package Includes:
  • 1 x Voltage Sensitive Relay
