Ebike Battery 52V 20Ah Lithium Triangle Battery Pack for 200~1500W Motor


Price:
Sale price$624.99

Description

Specification:

  • Apply for: 48V/52V 200-1500W Motor
  • Nominal Voltage: 52V
  • Rated Capacity: 20Ah
  • Watt Hours:1040Wh

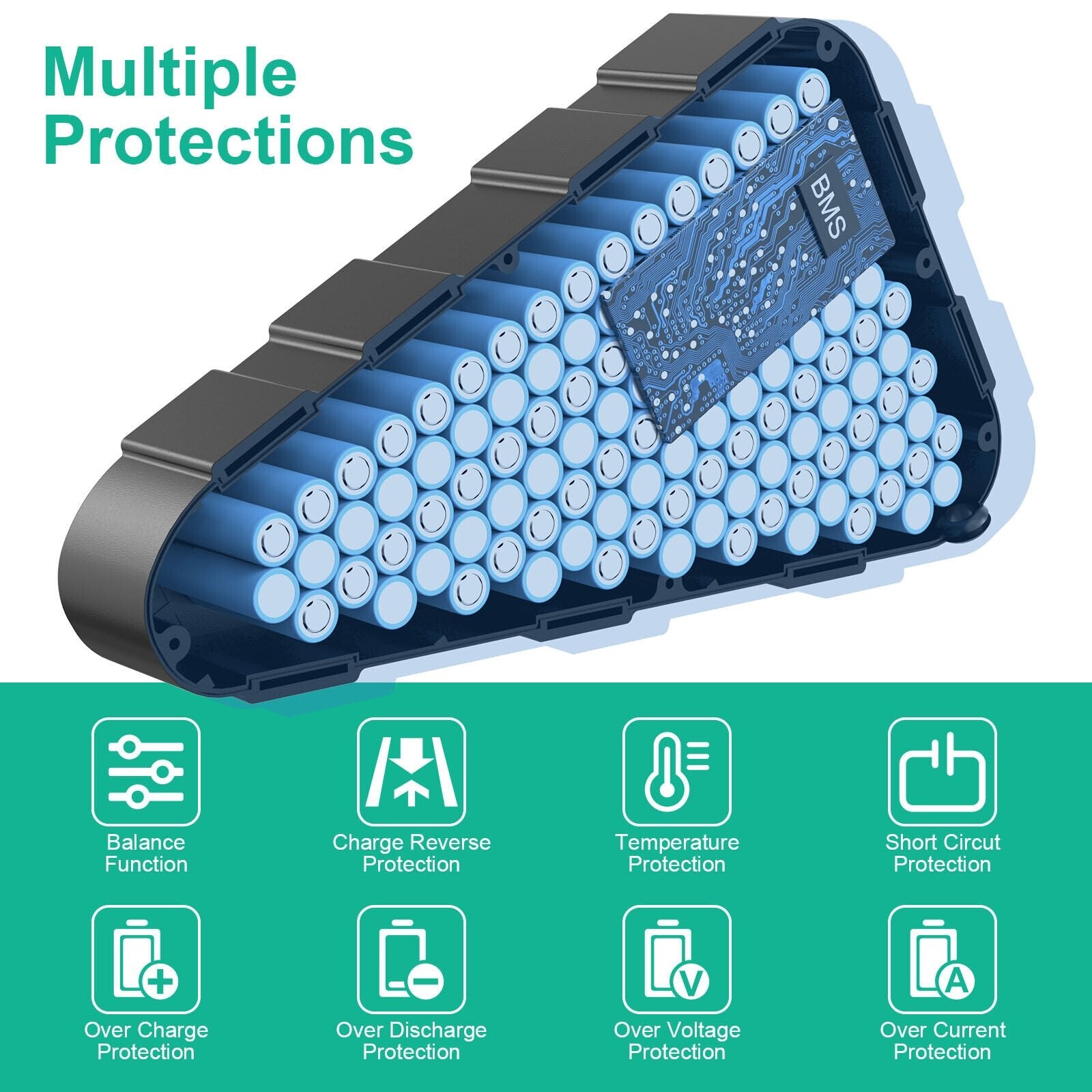

  • Configuration: 14S8P (112 cells)
  • Battery Cell: Top A-grade 18650 2500mah

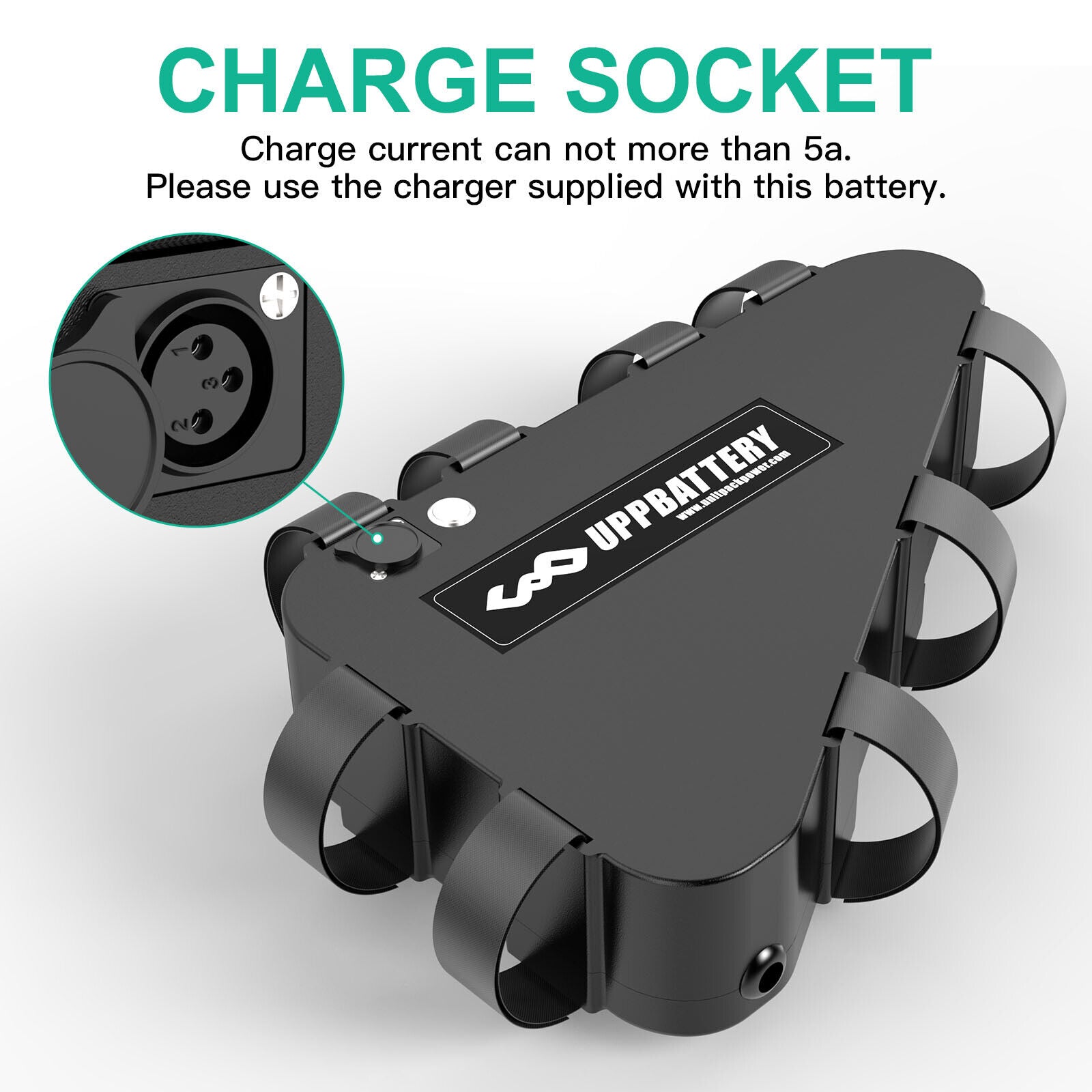

  • Max Continuous Charge Current: 5A
  • Max Constant Discharge Current:40A( BMS)
  • Peak Discharge Current: 120A
  • Charge Cut-off Voltage : 58.8V
  • Discharge Cut-off Voltage : 39.2V~42V
  • Battery Dimensions : 364*232*64*343*85mm  (14.33*9.13*2.52*13.5*3.35inch )
  • Battery Weight: 6.7kg (14.55 lbs)
  • WIth Charger : 58.8V 3A (AU Plug)

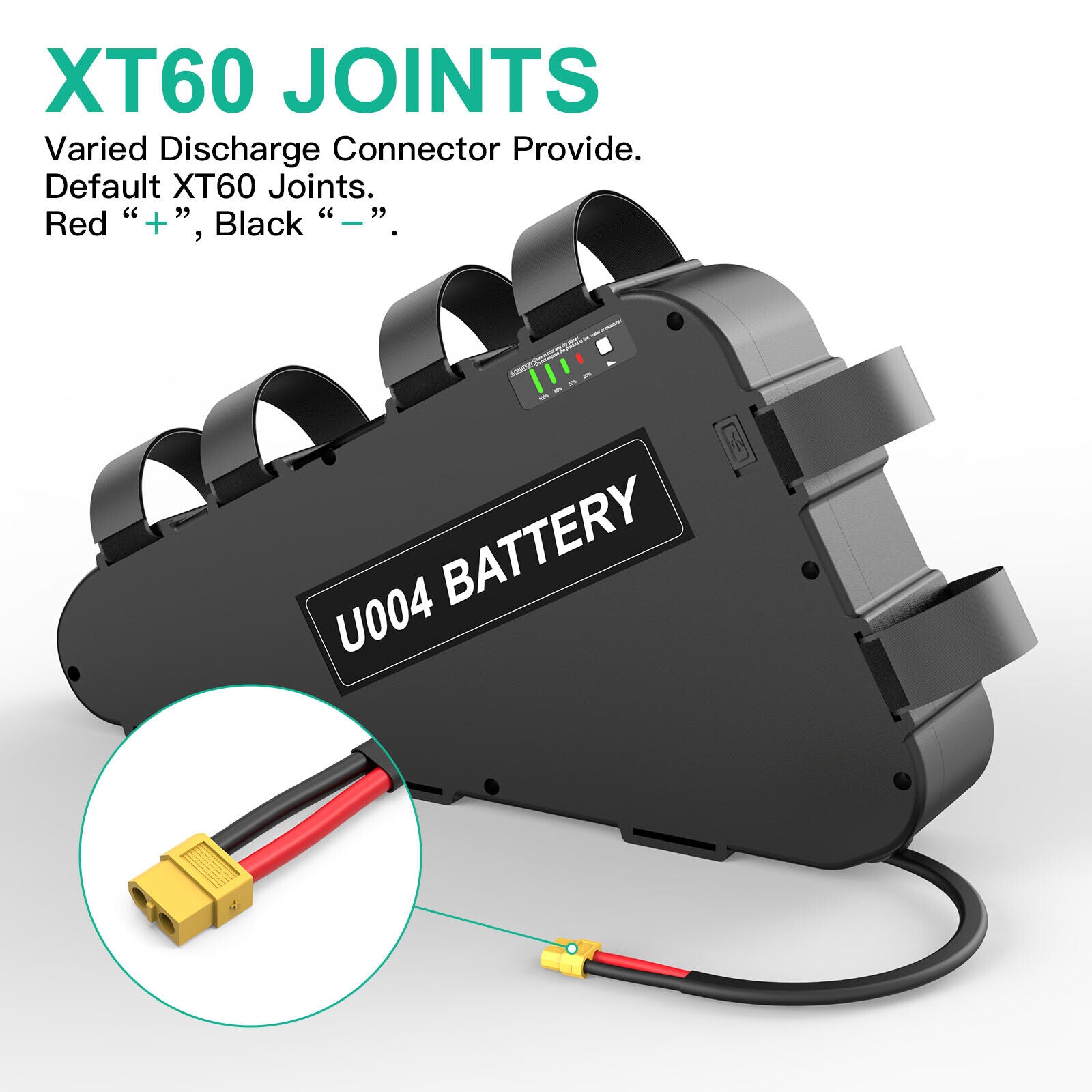

  • Discharge:XT60 (Male&Female)

Note : Our battery can fit most motor kit ,for example: Bafang, Voilamart, Tongsheng, but exclude these four : BOSCH , SHIMANO, YAMAHA ,Panasonic.
battout
DAILY MAINTENANCE (Charge and discharge)

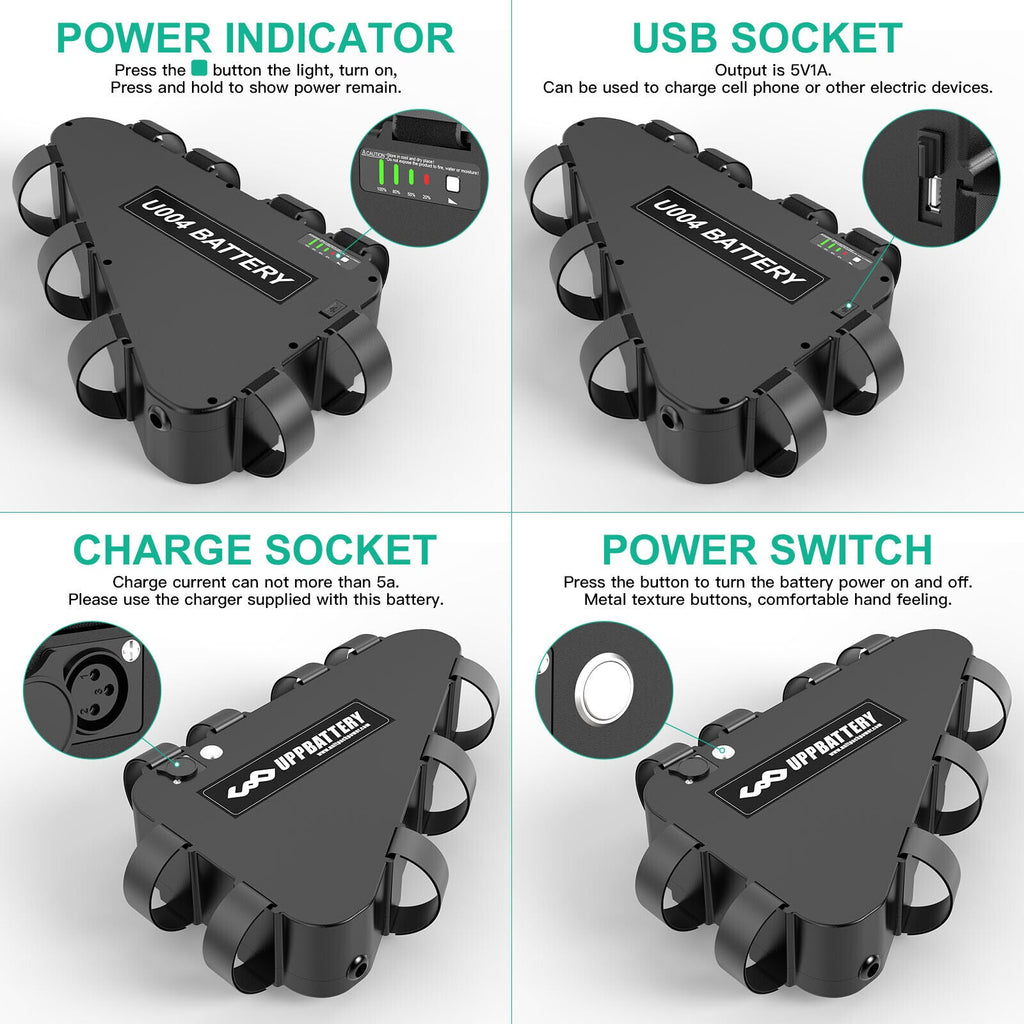

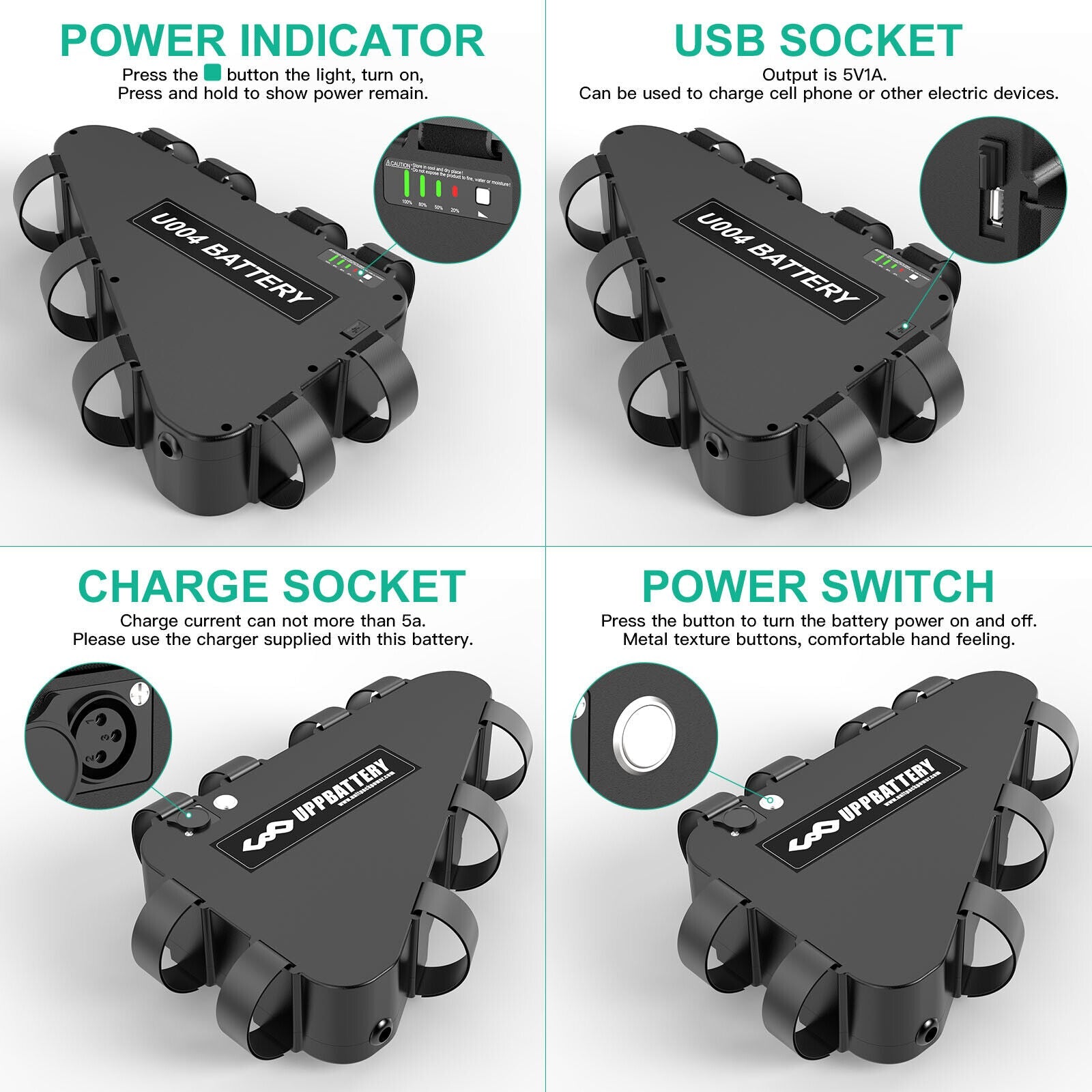

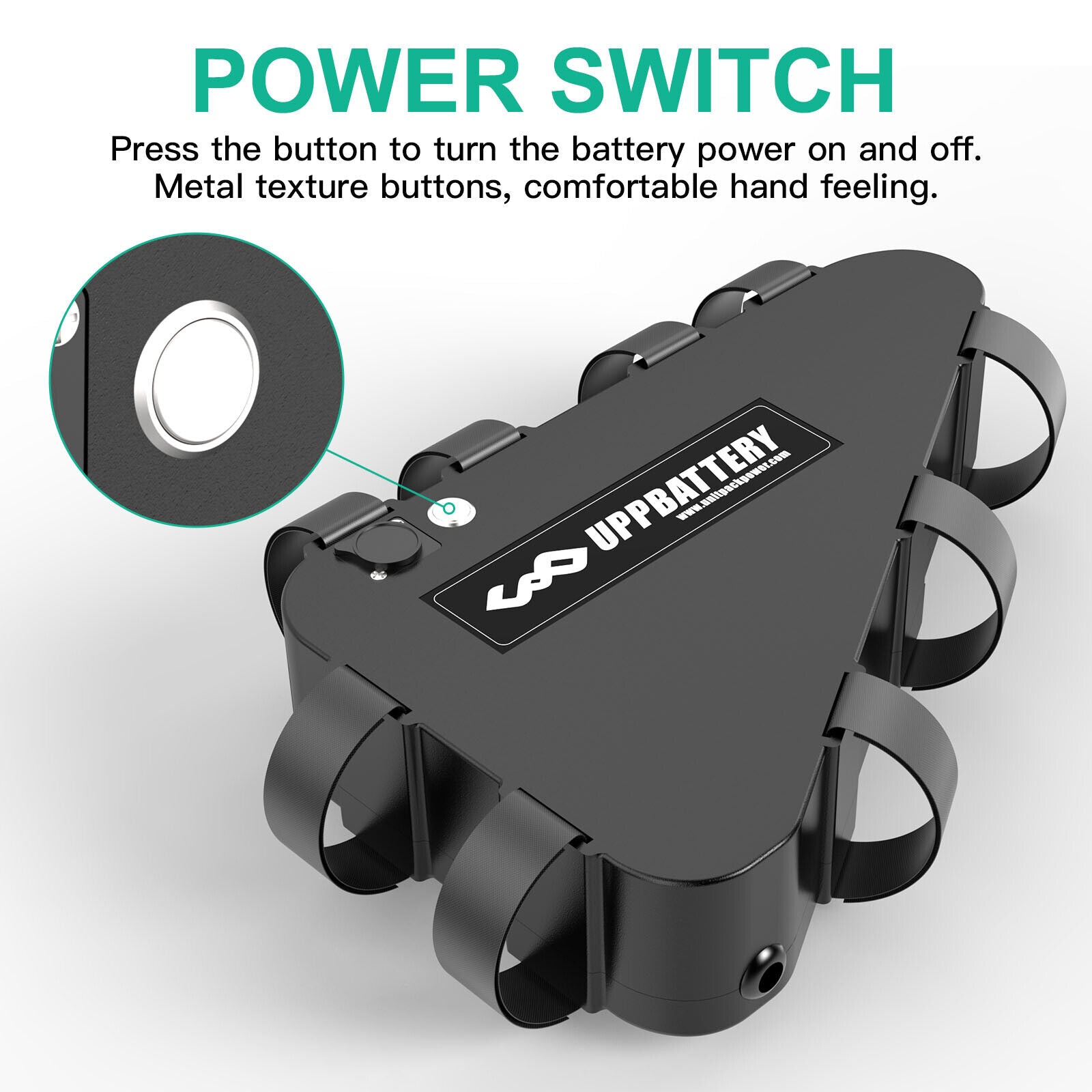

  • If the battery has a power switch, please open it during charging , can help to charge more full.
  • The lithium battery can be charged at any time, it is not necessary that all energy is exhausted before charging .

WARM TIPS

  • Do not immerse the battery in water or seawater. Store the battery in a cool, dry environment.
  • The battery should not be used near a heat source as a fire or heater.
  • Use the charger specifically for charging.
  • Do not interchange the positive and the negative terminals.
  • Do not connect the battery electrodes to a power outlet.
  • Do not throw the battery in fire or heating.
  • Do not short-circuit the battery by connecting the positive and negative poles directly to metal objects.
  • Do not carry or store the battery with metal objects such as hairpins, necklaces, etc.
  • Do not hit the battery, throw any trampling damage or throw it.
  • Do not solder the battery directly and do not pierce it with a nail or other sharp object.
