Car Key Shells and Fob Replacement: What to Check First

A cracked car key case can make every trip frustrating, yet a new case is not the same thing as a programmed replacement remote. The right choice depends on what has failed: the plastic shell, the blade, the battery, the electronics, or the whole remote. This guide shows how to distinguish those parts.

Start with the key you already own. Count its buttons, compare its shape and blade style, and find any part number or frequency printed on it. Those details are more useful than the vehicle badge alone, because one model can use different remote formats across years and trims.

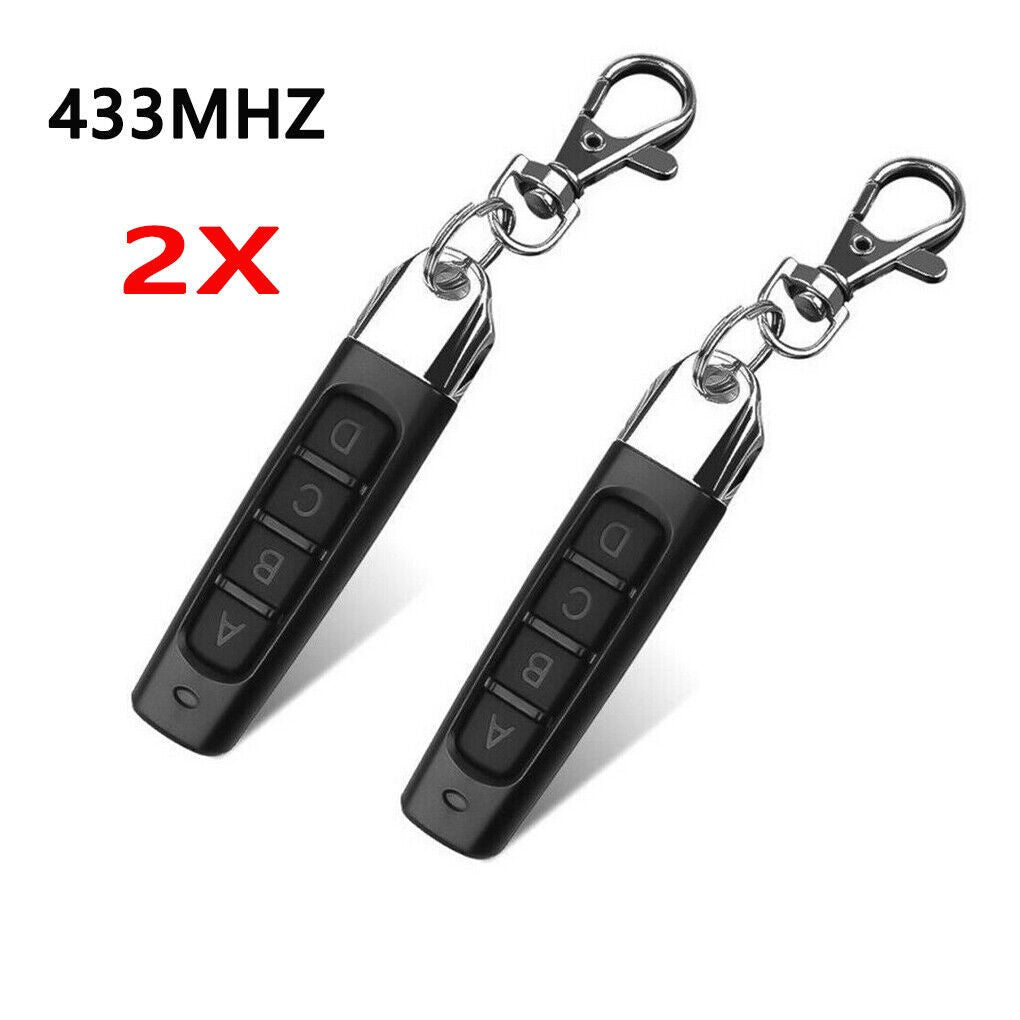

There are also universal 433 MHz cloning fobs in this range. They are access remotes, not a shortcut for every vehicle key. Check the original device, its coding arrangement, and the stated supported IC types before treating a garage, gate or alarm remote as cloneable.

Shell, complete remote, or cloning fob?

A shell-only product is a housing. It normally has no active electronics, transponder chip, or battery, unless the listing says otherwise. It can be a practical option where the old remote still operates the car locks but the buttons, hinge, case, or blade holder have worn down.

A complete remote has a different role. It may include its own circuit board, transponder and battery, then require programming before use. The Audi listing explicitly identifies a circuit board, battery and chip, and says the key needs programming and blade cutting. The Ford BA/BF full remote says it is ready to be programmed.

A universal cloning fob is neither a car-key shell nor a model-specific remote. Its buttons copy compatible remote functions after the appropriate process. It can be useful for a stated fixed or learning code type, but a 433 MHz label by itself does not establish a match.

Car key shell decision table

Use this table to narrow the category, not to skip verification. Take a clear photo of both faces of the old remote, including the blade and any label. It helps you compare the number of buttons, the opening style, and the placement of the battery compartment before taking anything apart.

Match the identifiers, not just the car make

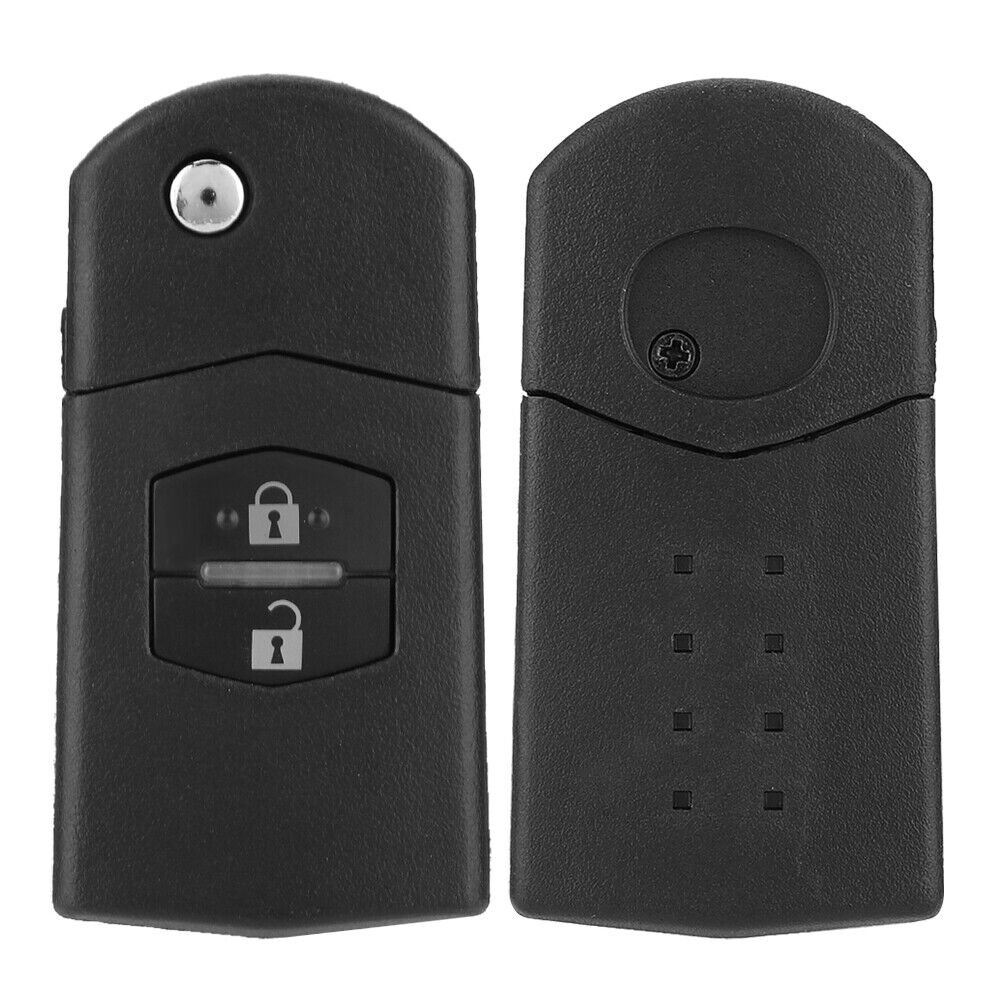

Vehicle names in a title are helpful but incomplete. A Mazda two-button flip shell is listed for Mazda 3, 5, 6, RX7, RX8 and BT50, while the Toyota two-pack shell names RAV4, Corolla, Camry and Prado. In each case, the old key’s button count and physical layout still need to agree.

Hyundai choices illustrate why details matter. One case is a four-button shell for i40, i30, ix35 and Sante Fe. Another is a three-button flip case for i30, i20 and Elantra. A third shell describes fitment for ix35, ix30 and ix20, and notes an uncut blade with no electronic internals. They are not interchangeable simply because they are Hyundai items.

For a complete remote, match technical labels too. The Audi remote identifies part number 8P0 837 220 D, three buttons, HU66 blade, 433 MHz, and ID48 chip. The Ford transponder flip key identifies 433 MHz and a 4D60 chip. If you cannot confirm those details, pause and ask a locksmith before a blade is cut.

Transfer and programming safety steps

Work on a clean, well-lit bench. Before opening the original fob, take photos that show the circuit board orientation, battery position, transponder location, and blade hardware. Some chips are small and can be separate from the main circuit board, so do not discard any tiny component from the old housing.

Move the internals gently into a matching shell. Never bend contacts, force a board into an incorrect recess, or pierce a coin-cell battery. If the old battery is swollen, leaking, or hard to remove, stop and seek suitable help. Test the remote functions before committing to blade cutting where the product instructions recommend that order.

Programming is an access and security task. A full remote may need a vehicle-specific procedure, while a shell reusing the same working board may not. A locksmith or dealer can confirm the transponder type, cut an uncut blade, and advise on programming. Keep every working key nearby when arranging that service.

Product cross-reference for common key jobs

OfficeCatch offers the following shells, full remotes and cloning fobs. Match the listing wording with your existing key before placing an order.

Keep the old key intact until the new housing or remote has been checked. That single precaution preserves a reference for orientation, button feel, and transponder transfer. It also avoids leaving you without access while you arrange cutting or programming.

FAQs

Can I replace only the shell on my car key remote?

Yes, a shell is intended for external damage when the original electronics are still working, but its button layout, blade, and internal fit must match your old key. Move parts carefully and keep track of the transponder. A shell does not include new electronics unless the listing says it does.

Do I need to program a replacement car key shell?

A shell-only case usually does not need electronic programming because it reuses the working internals from the old key. A complete remote or a new transponder key can require programming. Read the listing first, then ask an automotive locksmith or dealer about programming and blade cutting for your vehicle.

How do I match a Ford Falcon remote key?

Match the Falcon generation, the number of buttons, and whether you need a shell or a complete remote. The listed BA/BF full remote covers certain 2002–2010 vehicles, while the Ford flip key names BF and FG models. Confirm the existing remote and transponder details before ordering.

Will a universal 433 MHz remote clone any garage or car remote?

No. A 433 MHz frequency alone does not prove compatibility. The universal cloning remotes list particular fixed or learning code IC types, so check your original remote and the product details. Some systems have formats or security arrangements that do not suit a cloning remote.
